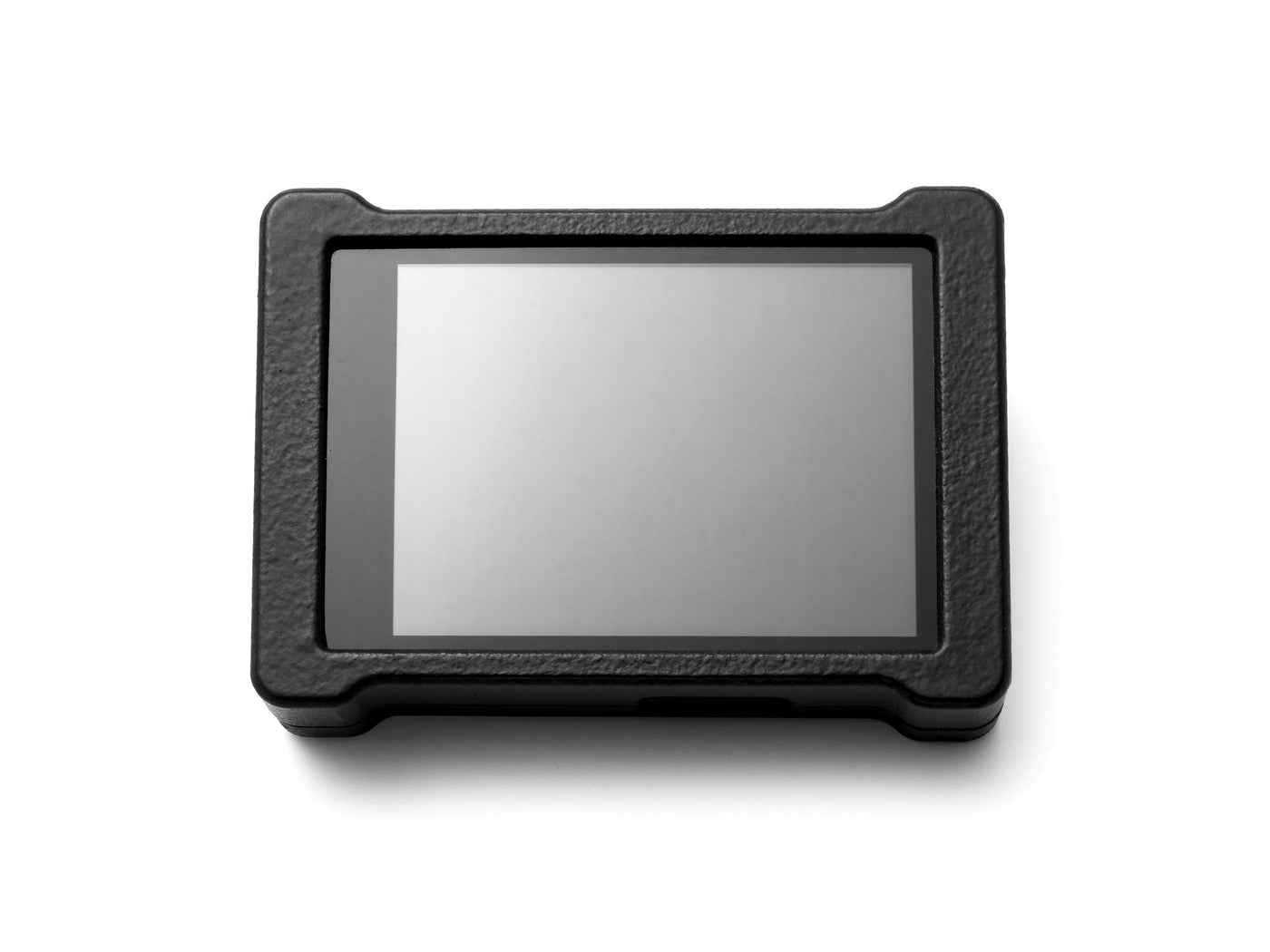

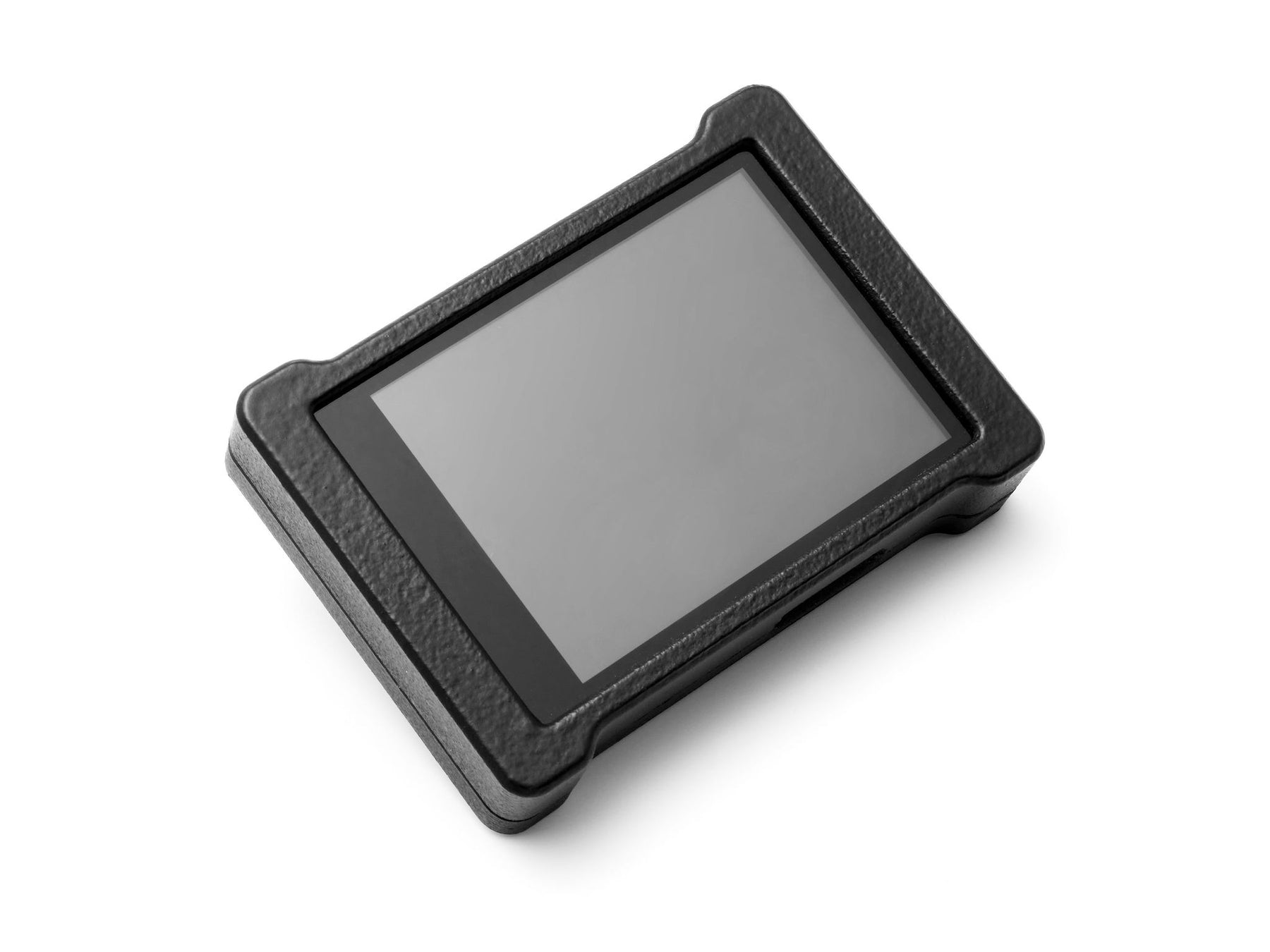

VADpro VAD32 - Universal 3.2" Display
One device for performance metrics, diagnostics, data logging, and more.
Performance Monitor
High speed CAN integration gives you access to up to 128 vehicle sensors that you can display in real time. Swap sensors on the fly using the 3.2" touchscreen and set up custom ranges and warning pop-ups using the DSS software.
Diagnostics
Swipe down from any page to diagnose malfunctions on the fly. VADpro can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS and other systems.
Data Logging
Use this section to explain a set of product features, to link to a series of pages, or to answer common questions about your products. Add images for emphasis.
Easy Installation

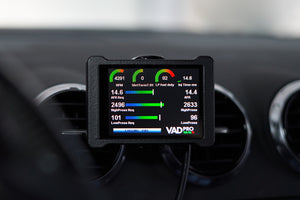

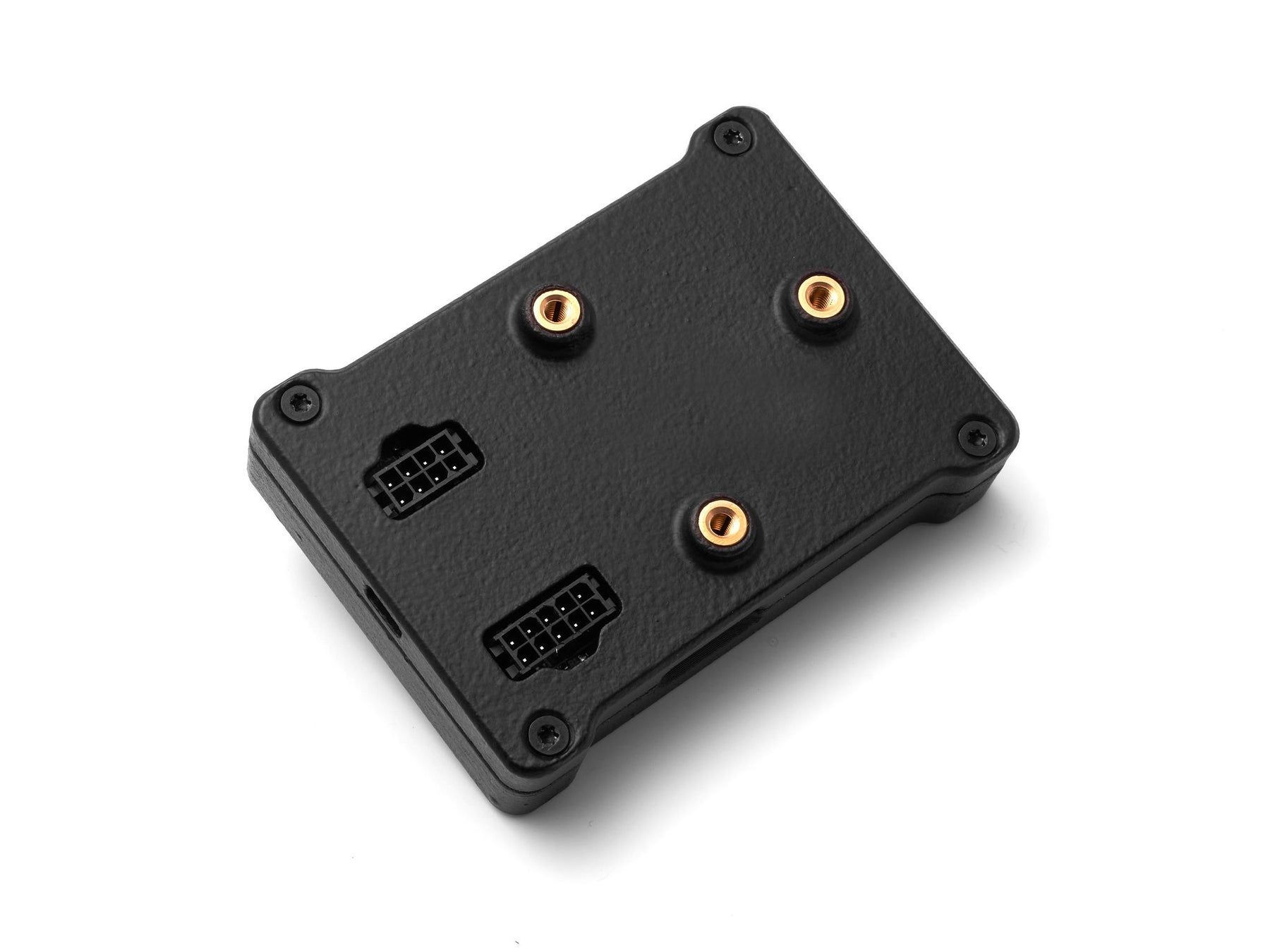

VAD32's compact size can be easily integrated with your car's interior.
Expandable Functionality

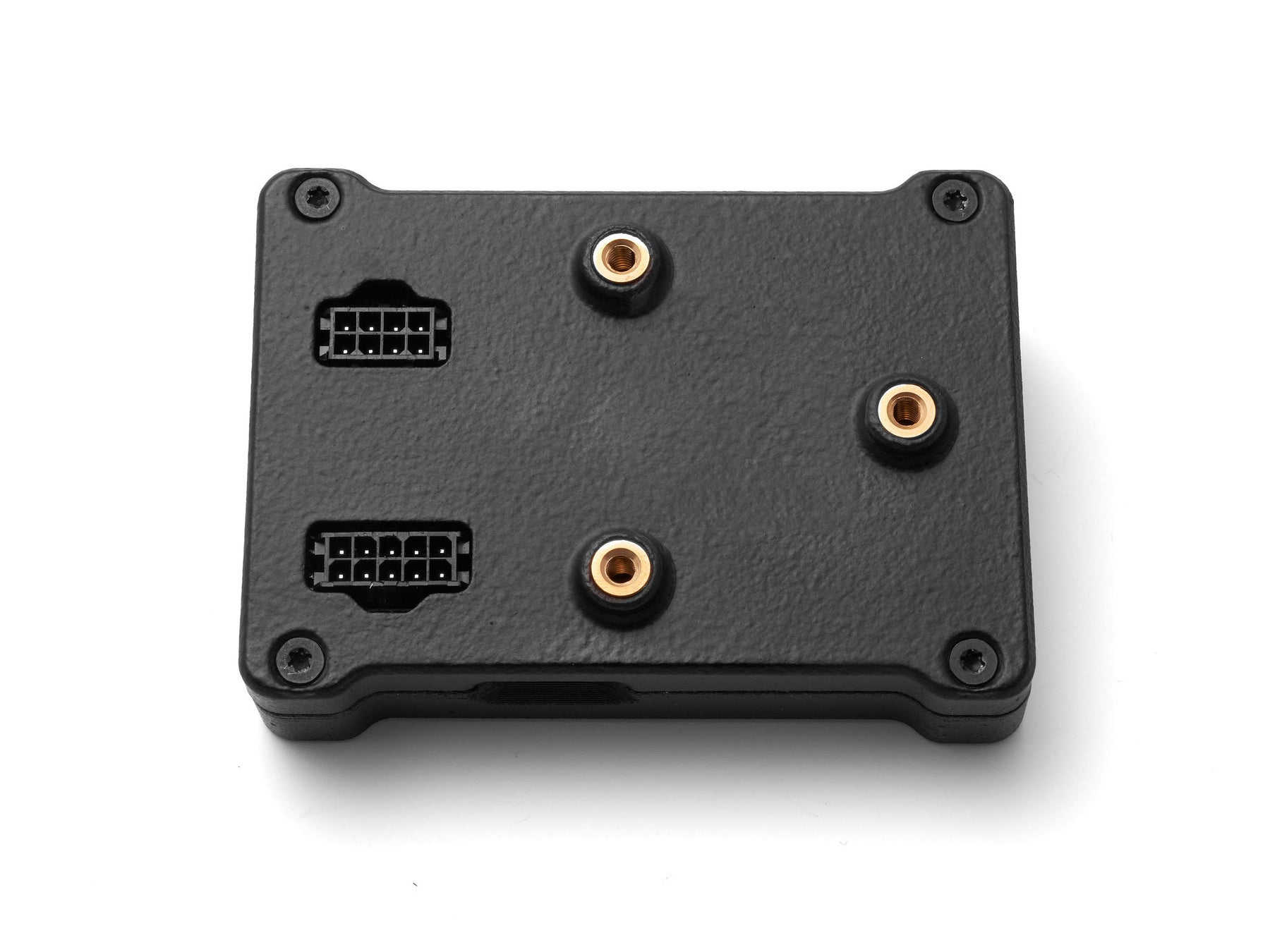

4 Analog + 2 Digital Inputs allow you to monitor third party sensors and devices.
Future licences in development will unlock Haldex, Water Methanol, Ethanol Fueling integration.
Customizable Screens
VADpro comes with six pre-loaded dashboards. A total of ten can be customized using the included software and library of widgets.
Universal Fitment
Universal Fitment
VAD32's compact size can be easily integrated with your car's interior.
Your Data, The Way You Want It.
Your Data, The Way You Want It.
Fully customise your dashboard graphics, sensors & widgets with the included software.
Your Data, The Way You Want It.
VADpro can display up to ten pages and has access to up to 128 of your vehicle's sensors.* Use the touch screen to navigate between each page and choose which sensor you want to display. Need more customization? You can personalize your views by changing the graphics, sensors and widgets using the provided DSS software. We've pre-loaded some examples on your VADpro to get you started.

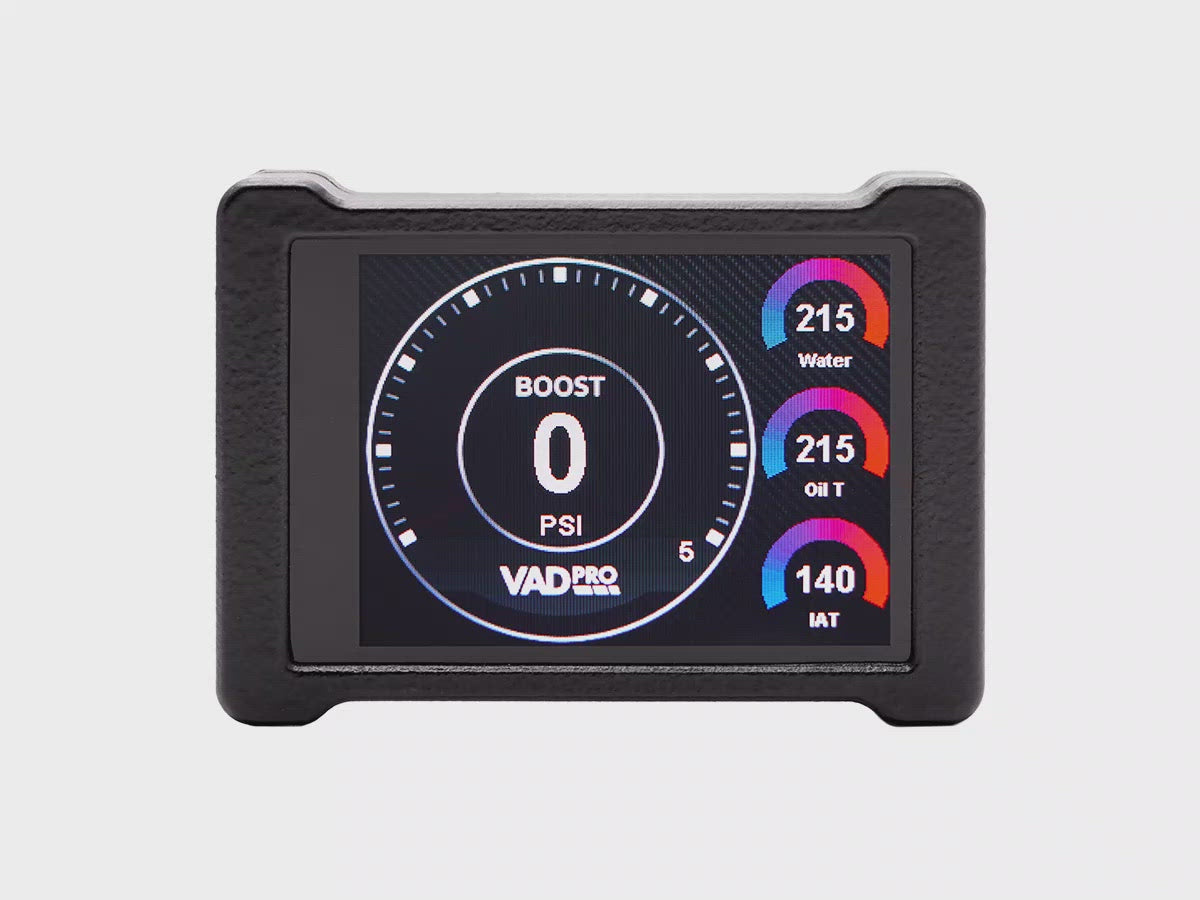

Daily Driving
Large boost gauge and three sensors of your choice.
Track Day
Tachometer with large gear display. Set your shift light with our DSS software or connect one of our LED shift light accessories.
Performance Meter
Measure your 0-60mph, 0-120mph, and 60-120mph times
Logging Basics
See how your car is running at a glance.
Logging Air
Everything you need to monitor your air flow.

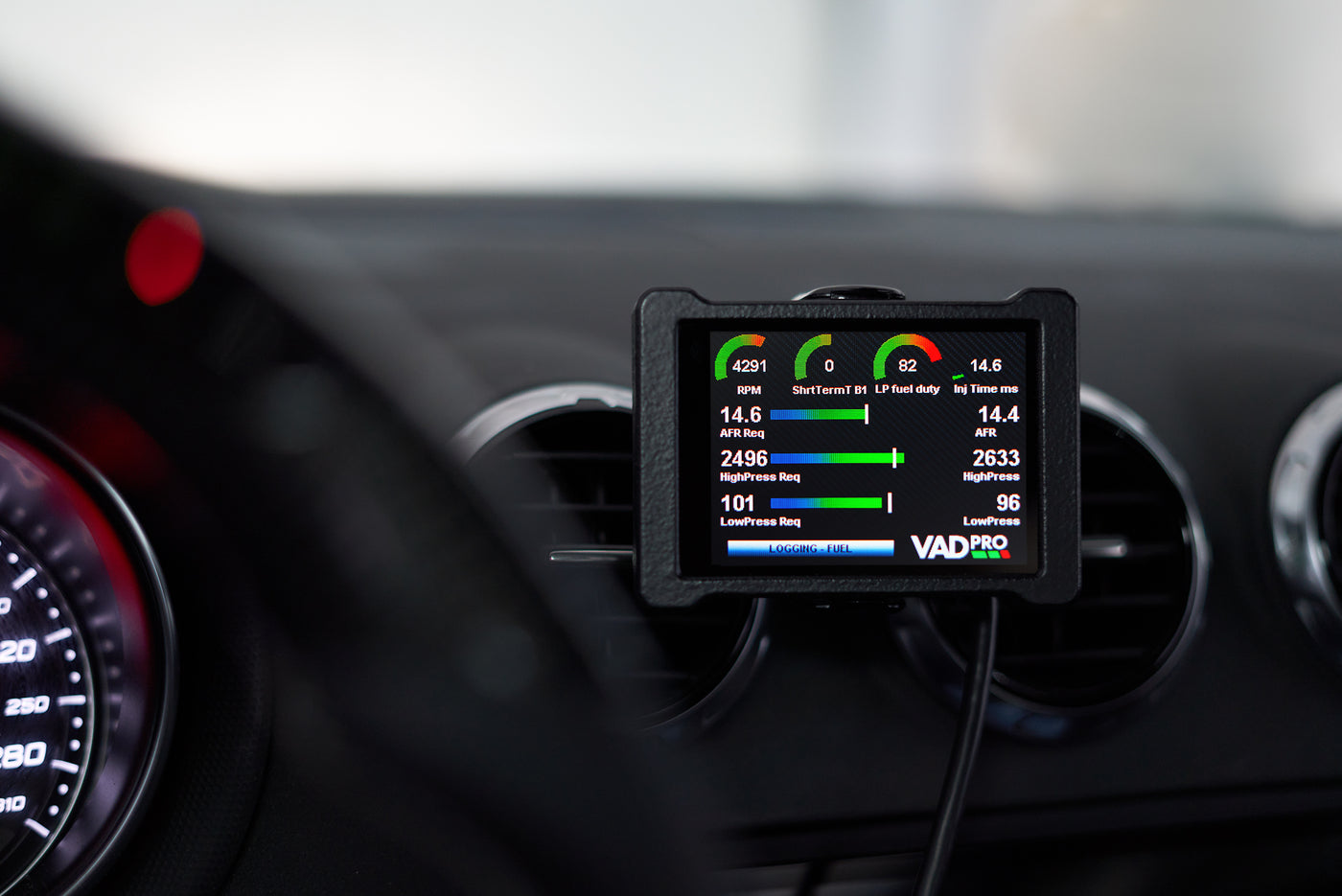

Logging Fuel
Your key fueling data at a glance.
Vechicle Diagnostics
Swipe down from any page to diagnose malfunctions on the fly. VADpro can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS and other systems.
FAQs
In general, all control devices are supported that have a documented CAN bus interface. The manufacturers usually supply a "dbc" file which can then be converted for the display.
The following control units have already been tested:
- trijekt (Premium, Bee, trigifant) - trijekt plus with restrictions
- Megasquirt 2 and 3
- k-data KDFI
- UMC1 / UMC2
- Microsquirt
- EFIgnition
- MaxxECU
- EcuMaster Emu (standard with CAN , standard with Can Bus Adapter, Black)
- VAG (Audi / VW / Seat)
- van kronenburg KMS MD35 (MP25 with CAN bus adapter)
- LinkECU
- AEM EMS
- Motorsport Electronics ME442 and ME221 (the latter with adapter)
- MME ECU481 (with MME Can Bus adapter)
- VEMS (with serial adapter)
If your control unit is not listed, please send us an email support@vadpro.com
Many customers always ask: "Which values can I query from my control unit". The answer: " ALL ". The display is compatible with ISO 11898-2 and SAE J2284. Both CAN2.0A and CAN2.0B (ie 11 and 29 bit identifiers) are supported.
The control unit manufacturers themselves determine which values are sent via the CAN bus interface and document them accordingly. A total of up to 64 sensors can be queried if the manufacturer supports this. Further supported control devices can be found in our download area.
A small note on Megasquirt: all derivatives are supported here, such as KDFI, UMC1, Microsquirt etc. However, a CAN bus interface must be implemented.
If the desired control unit is not listed, please contact us at support@vadpro.com
