VADPro VAD15 OBD2 for Ford Mustang MK6 LHD/RHD
CC57001
- $12 Flat Rate Shipping to Continental USA & Canada
- Made in Germany by CANchecked
- Available To Order

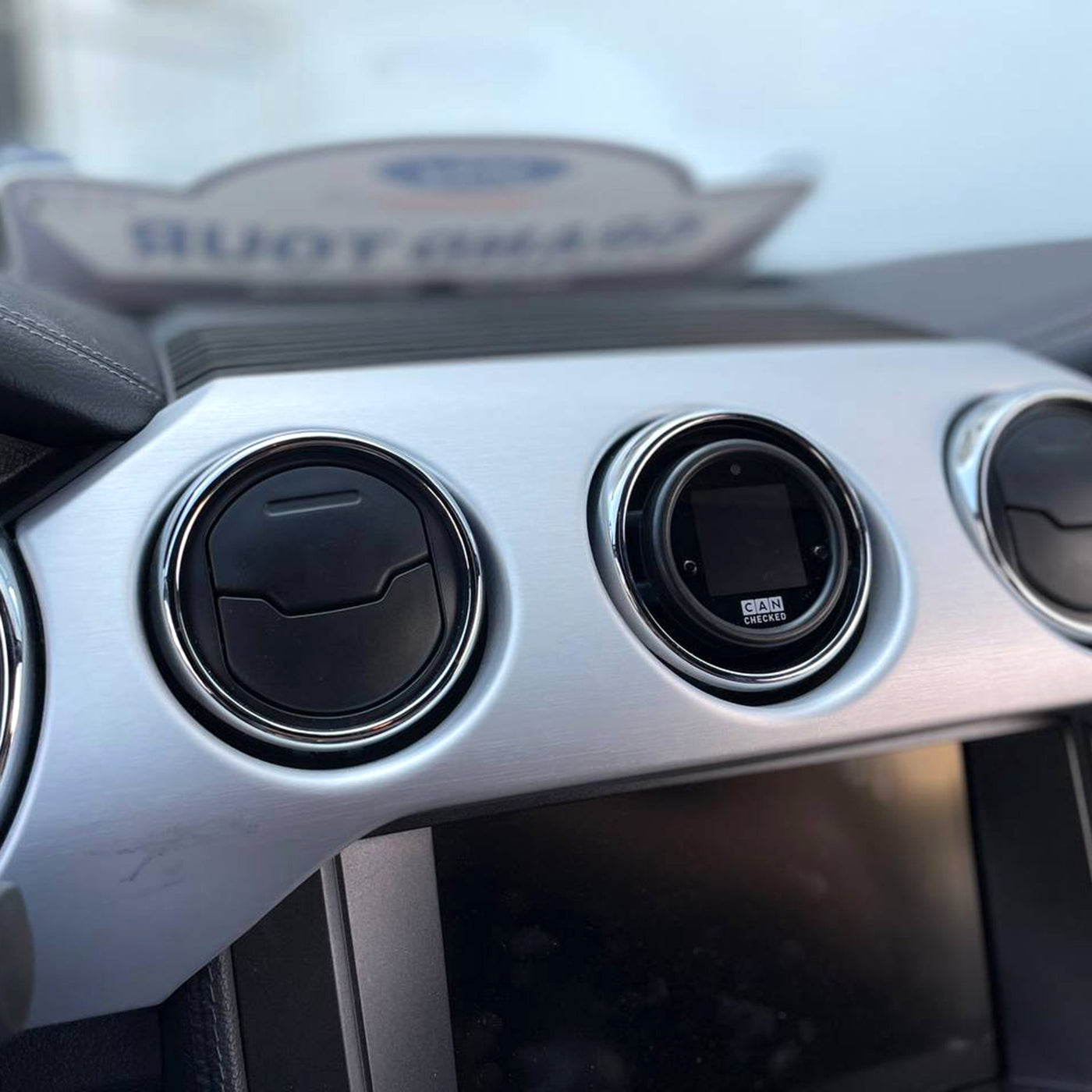

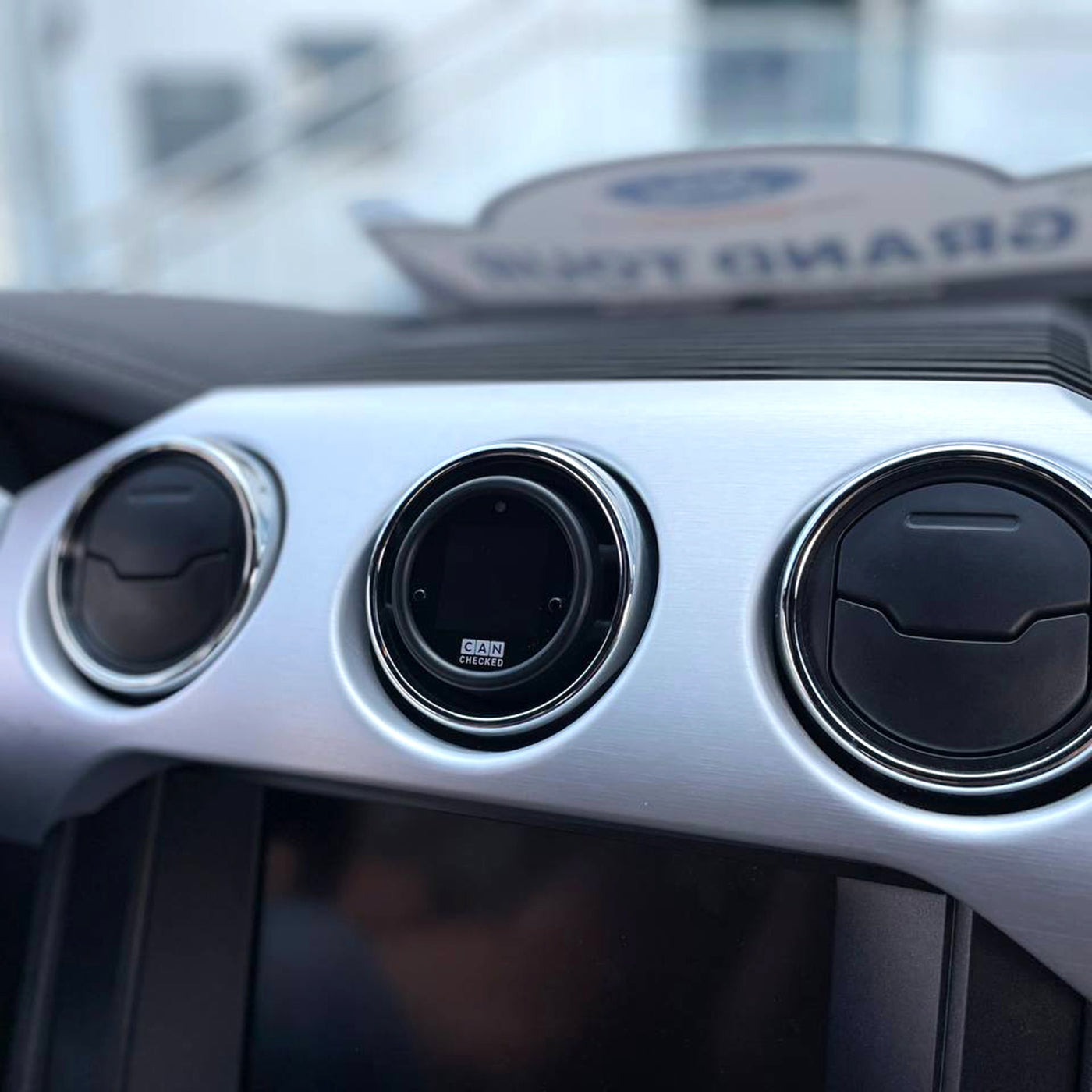

The VAD15 GEN 2 provides access to all data from the engine control unit. The sensors are queried by the CAN bus using the manufacturer-specific protocol. We have optimized the protocol to achieve maximum query speed. The affordable display instrument for OBD 2 ECUs is equipped with an easy-to-read OLED screen, which offers best readability even in direct sunlight. Thanks to the 52mm diameter, it is compatible with many existing options. The MFD15 display comes together with a vehicle-specific bezel and thus fits into the interior like an original part. The ventilation remains intact through the slots. Operation is now by means of two newly fitted push buttons; a rotary knob is also available as an option. The retrofit display is suitable for all ECUs that output OBD 2 via Can-Bus or UDS. The display can also be fed with 6 values from external analog sensors. This also makes it possible to use it as a stand-alone multifunction display.

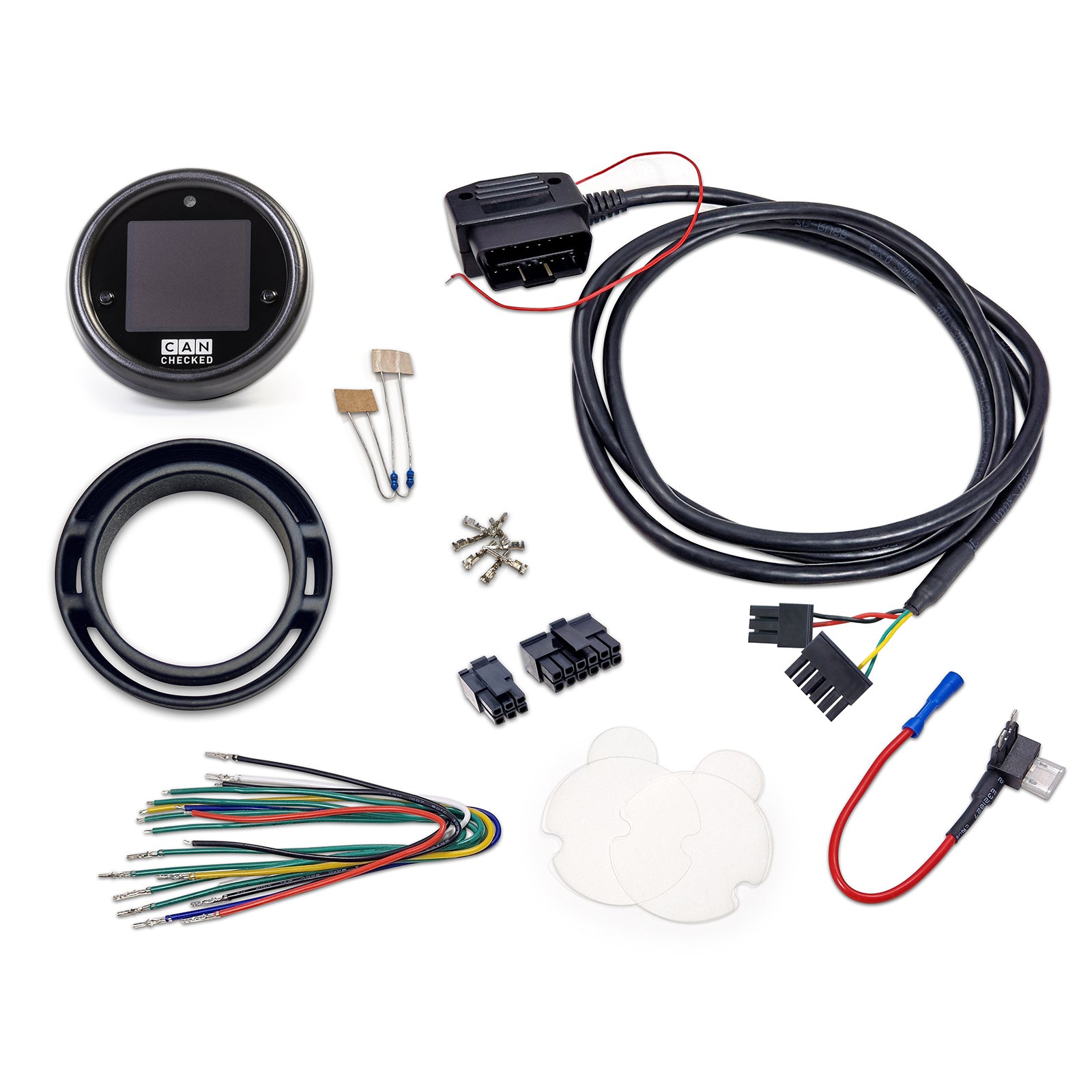

- VAD15 52mm display with mounting bracket
- Wiring harness set
- Quickstart Guide
User Manual
Download the VAD15 Gen 2 User Manual: HERE
Dimension and Pin Assignment
If someone would like to integrate the MFD15 themselves and is fit in the field of CAD design, we offer a STEP/STL file here, which can be used as a dummy:
Connection and Expansion
Each delivery includes:
- Connector B (6-way)
- Connector C (12-way)
- 20cm pre-crimped connection cable for power supply, CAN bus, analog inputs, 5V and sensor ground
- Pins to crimp yourself
- Two 1K resistors (for pull-up for NTC sensors)
Any sensors can be connected via the six analog inputs - we support both linear 0-5V and NTC sensors.
The sensors we offer are usually stored in the TRI files and only need to be connected:
- CC22902 temperature sensor for liquids
- CC22901 pressure sensor M10x1 0-10 bar (145psi)
- CC22900 pressure sensor 0-5.5bar (80psi)
- generic type K converter 0 -1250°C
\CC22501 Rotary Knob (optional)
The rotary knob already known from the MFD15 Gen1 is only optional.
It can be used when the front buttons of the display are difficult to reach or when you prefer to use them.
The connection is plug and play directly to connector B on the back of the display. With its 50cm long cable, it can be flexibly accommodated in the vehicle.
Vehicle Integration
We offer tailor-made vehicle integration for many vehicles. This contains:
- MFD15 Gen2
- vehicle-specific holder/cover in 52mm diameter
- matching OBD connection cable
Currently available integrations:
- Audi A1 8X (incl. S1)
- Audi A3 8P (incl. S3/RS3)
- Audi A3 8V (incl. S3/RS3)
- Audi TT 8N (without connection cable)
- Audi TT 8J (incl. TT-RS)
- VW Up (incl. GTI)
- Skoda Citygo
- VW Amarok vFL
- VW New Beetle Facelift
- Fiat 500 / Abarth 595
- Nissan Skyline GT-R33 (without connection cable)
- Mazda MX5/Miata NC + ND
- Mini Cooper R56
- Ford Fiesta Mk6 + Mk7
Online logging of the MFD15 Gen2
With the "Online Logging" license, your display can log the data into the oDSS, where you can then download it as a file to your smartphone or PC.
All sensors are logged in the log (ATTENTION: with OBD and UDS only the currently displayed ones!) . Select the sensors you may want to graph.
Integrated shift light + warnings
The internal LED in the top center of the display can be used as a shift light and/or as a warning LED.
Up to 8 different colors and speed limits are assigned as a shift light, as well as a speed at which the shift light flashes strongly and quickly.
You can assign a min and max value for each sensor (in the oDSS via "Sensors") and also activate the "LED" there. If the sensor is above the maximum value or below the minimum value, the LED flashes quickly in the color specified under "General Settings" => "LED warning". The shift light is deactivated during the warning period.
CAN switching and analog forwarding
The display can be expanded with a license for our " Can Switching ". On the one hand, this contains button statuses, which are forwarded via Can Bus (ON/OFF) and, on the other hand, " Analog Forwarding ", which the internal analog inputs send via Can Bus.
The display offers emulations for:
– CANchecked MCE18 and CFE18
– Haltech IOA, IOB or IOA+B
– Ecumaster (Emu v3)
– LinkECU
In the oDSS you can now configure the CAN switch under "General Settings" :
- left button
- right button
- button of the optional rotary knob
The functions are then assigned to these buttons in the control unit. Eg:
– MAP Switch
– Launch Control
– Antilag
– Enable Fan
– or others
Alternatively, set the "Encoder button" to "Can Switch 1-6". Here you get an overview of the buttons 1-6 and their current status. By turning the rotary knob, you reach the buttons and you can change the button status by pressing the rotary knob. In the oDSS you adjust the names of the buttons and thus you know exactly which function is active/inactive.
" Analog forwarding " forwards the sensors connected to the display (up to 6) to the control unit - these can be sensors, physical switches, position encoders or others.
Ethanol sensor directly on the MFD15 Gen2
With the additional license for the ethanol sensor, you connect a sensor directly to the display. You need a pullup resistor (10K) between 5V and signal.
Now you can view and log both the ethanol content and the fuel temperature.
Downloads
All downloads and information can be found in the CANchecked download area
