VADPro VAD15 OBD2 for Ford Fiesta MK6 LHD/RHD

$604.00

Free Shipping to Continental USA & Canada

Developed by the talented team at CANchecked

Made in Germany

Available To Order
Inventory on the way

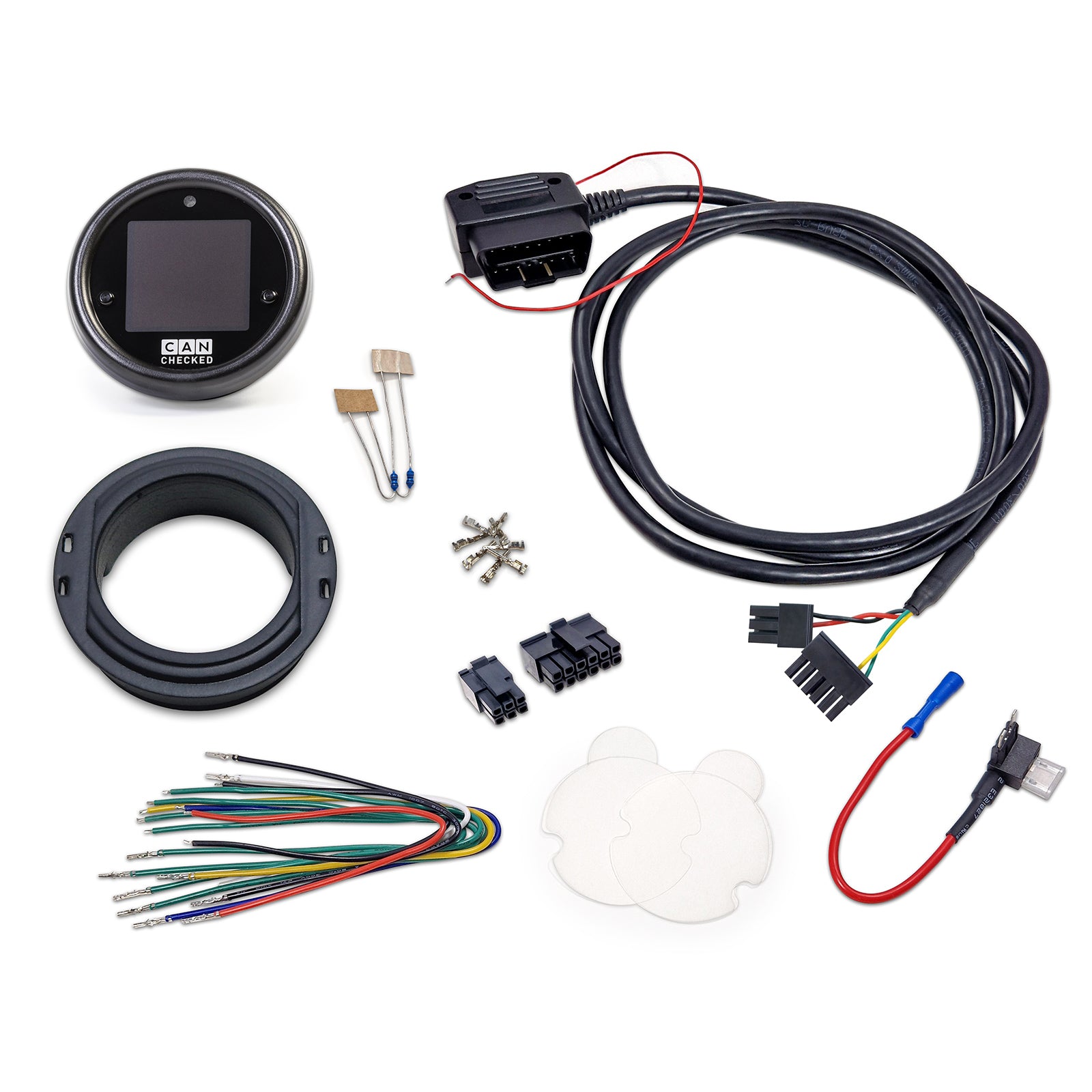

VadPro MFD15 GEN 2 display

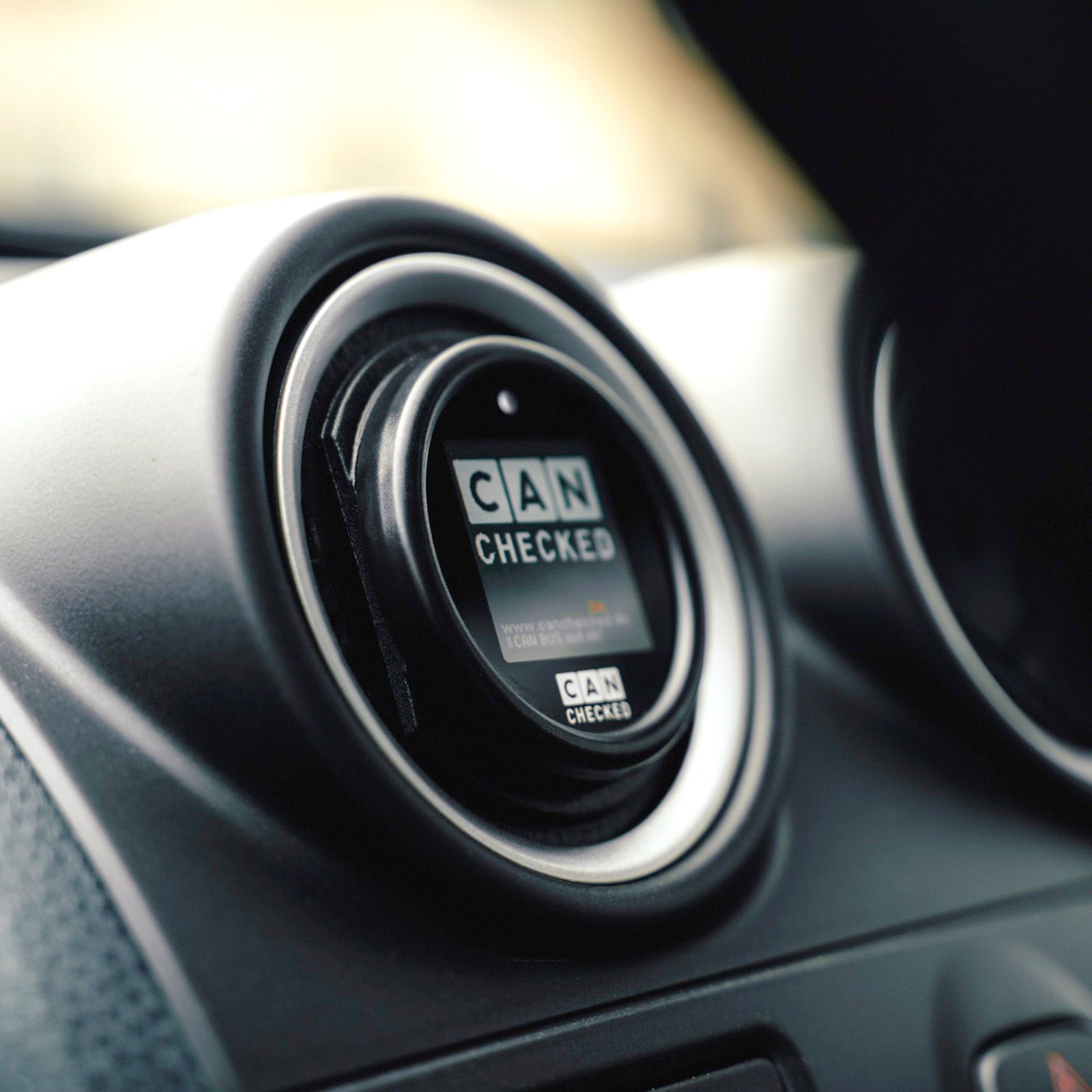

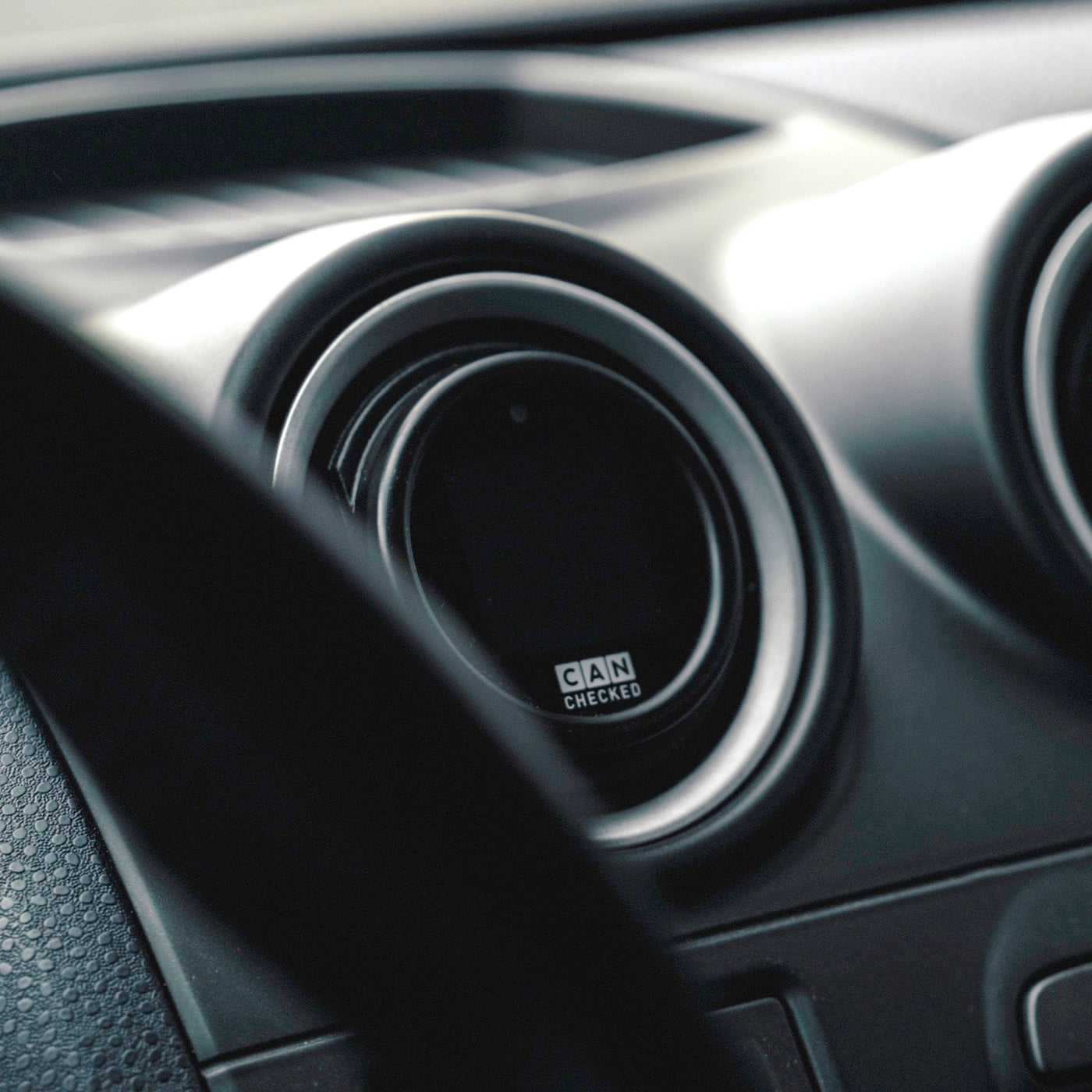

Vehicle specific adapter bracket for vent pod
OBD2 adapter cable
Quickstart Guide
Plug B (6 pin)
Plug C (12 pin)
20cm pre-crimped connection cables for power supply, Can Bus, analog inputs, 5V and sensor ground
Pins to crimp yourself
Two 1K resistors (for pullup for NTC sensors)

Installation Guide

User Manual

Performance Monitor

High speed Can-bus integration gives you access to up to 33 fixed sensors that you can display in real time. Use the rotary control dial to swap sensors on the fly, set min and max warning values, and enable or disable warning popups.

See Supported ECUS

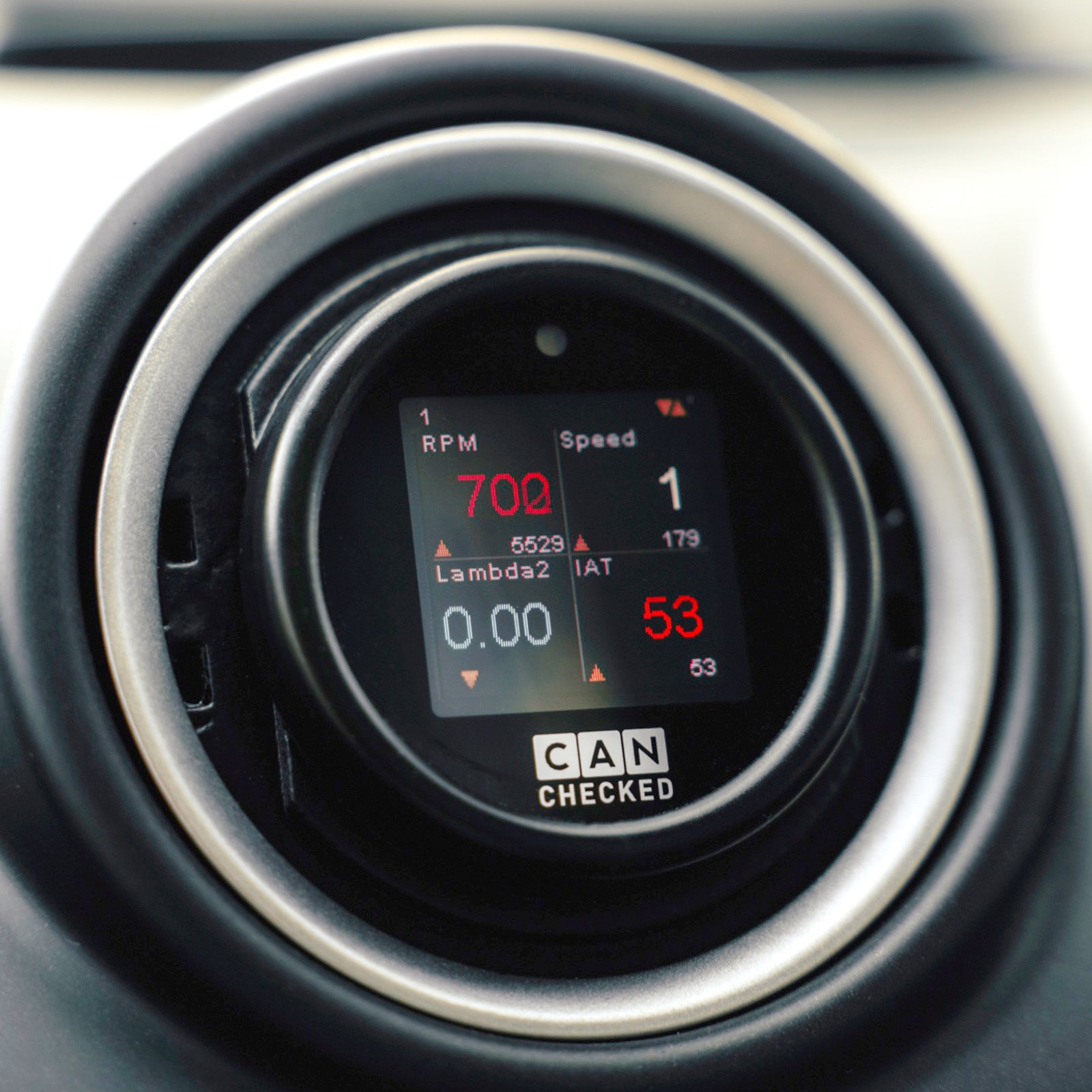

1.5" OLED Display

Perfect blacks and bright contrast delivers the best readability, even in direct sunlight.

Configurable Views

Configure eight pages with up to six sensors per page. Choose from a variety of styles: numerical, analogue, line graph, bar graph, to display your data the way you want it.

Integrated Shift Light

Configure the integrated single LED shift light with 8 specific RPM settings and the colours of your choice.

An optional 8 LED shift light array is also available as an add-on with easy plug and play installation.

Optional shift light upgrade

Expandable Functionality

4 analogue inputs allow you to connect 0-5V sensors of your choice such as: oil pressure, fuel pressure, EGT, and boost pressure.

Universal Fitment

52mm diameter is compatible with most aftermarket gauge holders and can be integrated almost anywhere.

FAQs

- trijekt (Premium, Bee, trigifant)
- trijekt plus with restrictions
- Megasquirt 2 and 3
- K-Data KDFI
- UMC1 / UMC2
- Ecumaster EMU Black and Classic (with Can Bus Adapter)
- van Kronenburg KMS MD35 and MP25 (with Can Bus Adapter) - VAG (VW / Audi / Seat)
- Motorsport Electronics ME221 / ME442 (Can Bus)
- LinkECU
- MaxxECU
- Motec
- SCS Delta
- BMW E46 Can Bus Protocol
- VW / Audi Can Bus Protocol
- OBD2 Can Bus (250 / 500kbit 11 / 29bit)

With serial adapter:
- VEMS
- ME221

We continue to expand our list of supported ECUs. Please contact us at info@vadpro.com to make a suggestion.

No. The Displays are always protected against heat that’s flowing through the air vents.

Yes it does. We’re always creating air vent solutions that still allow airflow passing by the display through special tunnels.

All sensors that are queried are defined her:
- Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
- Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump
- Lambda / mixture: Lambda value, injection time, short-term lambda adjustment, longterm lambda adjustment
- Miscellaneous: Speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, terminal 30 voltage, oil level, torque, gear...
- If values are missing, they can easily be added.
