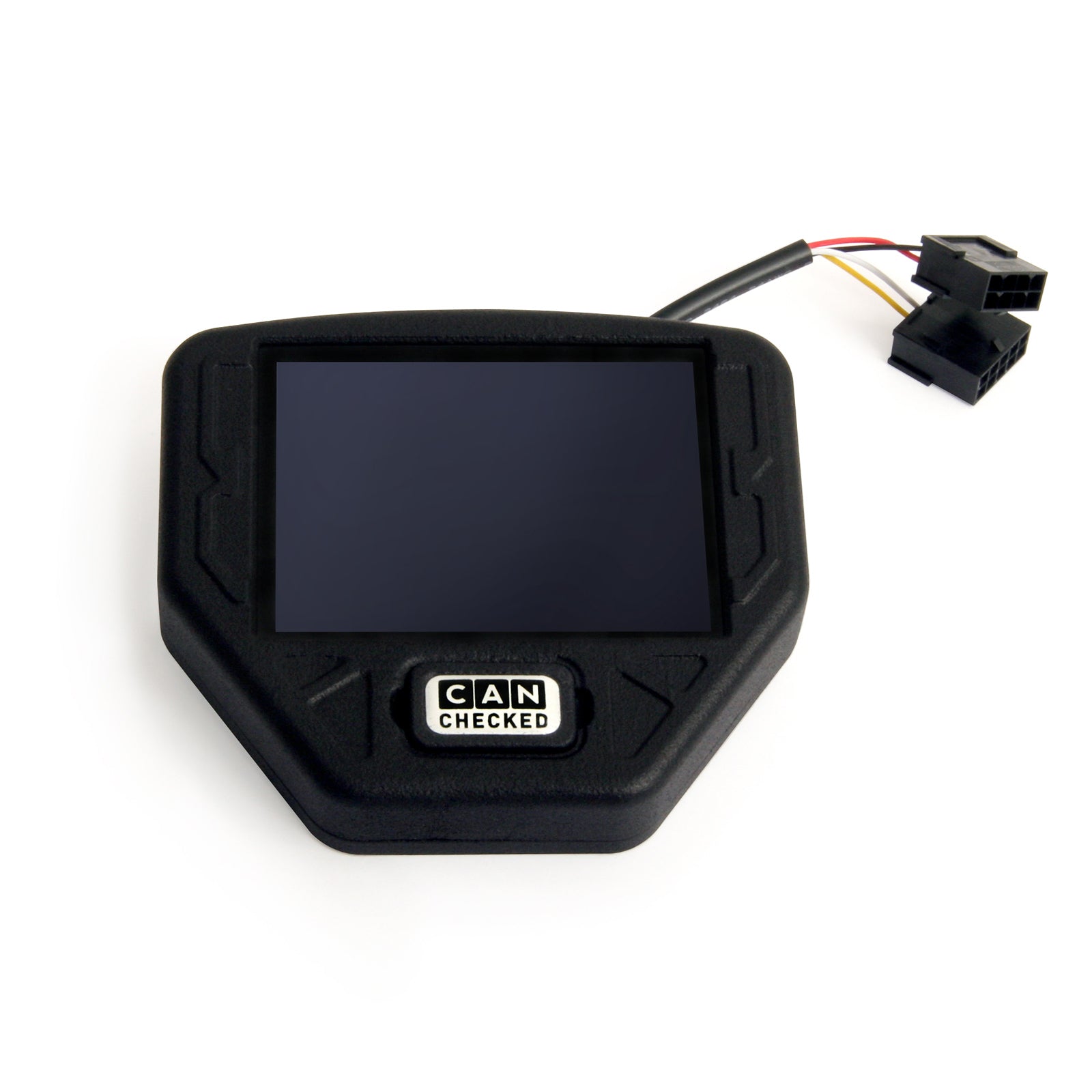

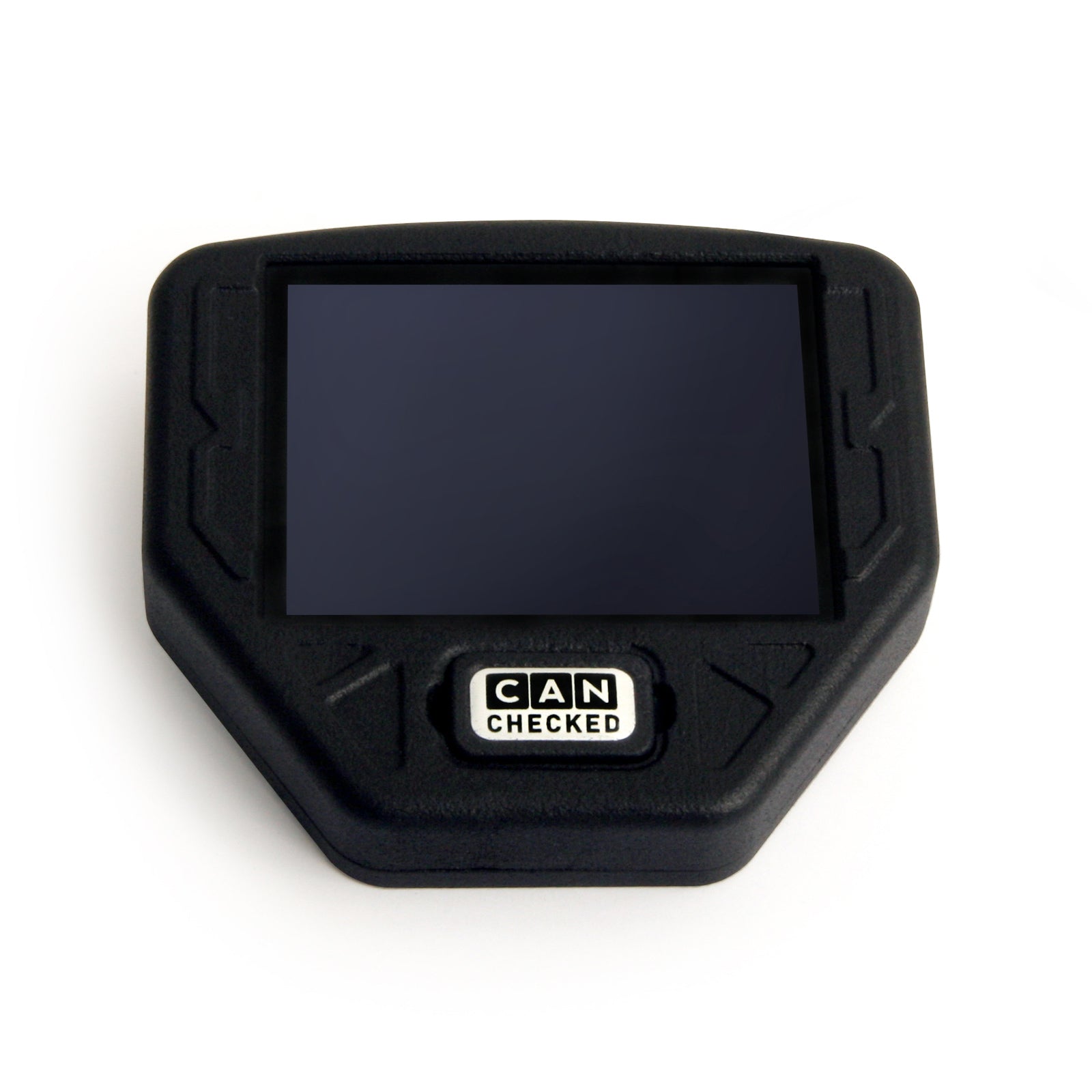

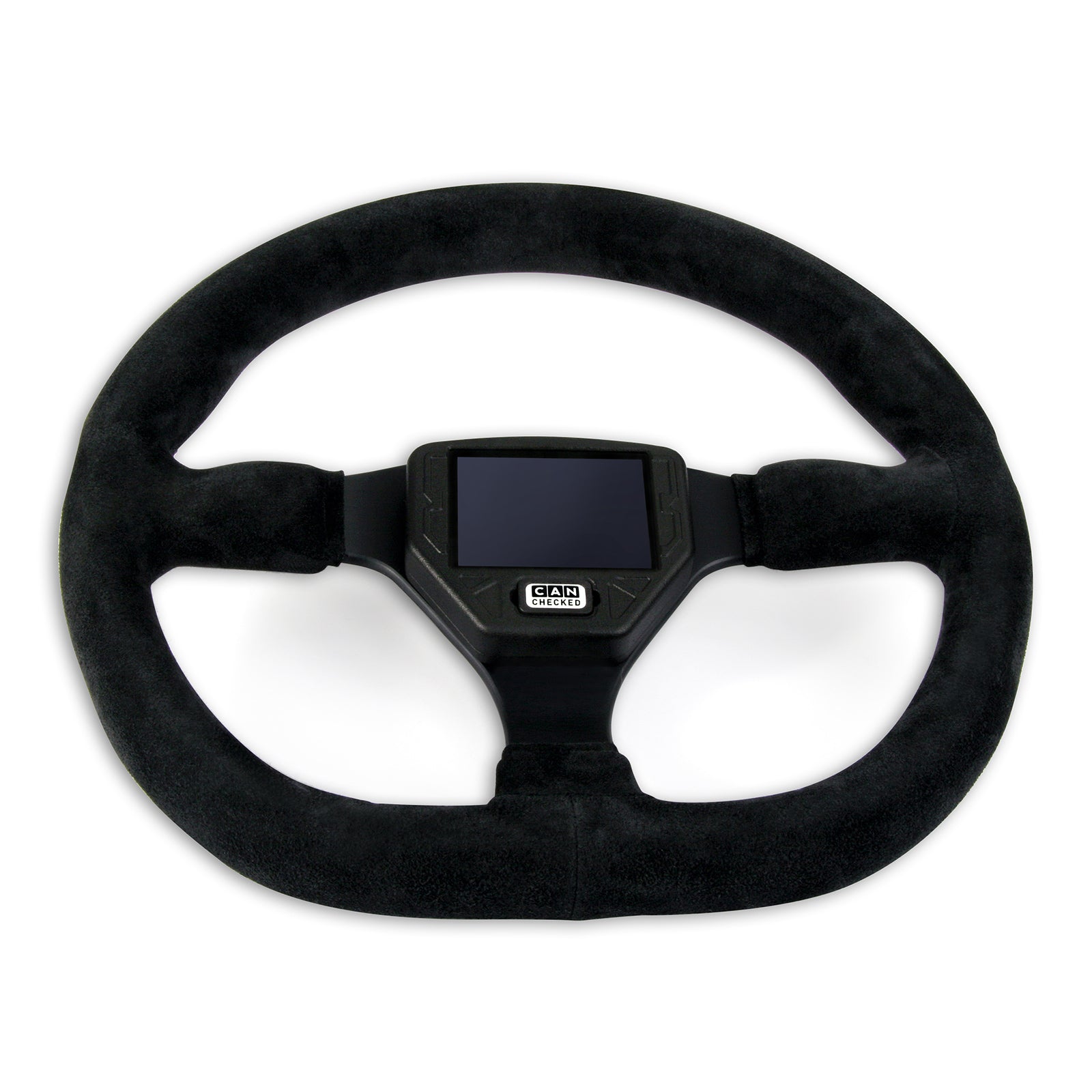

The SWD32 Gen2 fits on every flat steering Wheel with a 6x70mm hollering and is an intelligent display with features you won't want to do without. The lightweight plastic housing impresses with its symmetrical appearance and can be used both vertically and horizontally.
Key Features
- Compact size: The external dimensions are 89.5 x 60.5 mm and the depth is 19.5 mm (without connector)
- Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
- Gear display: Directly via Can Bus or calculated from speed and rpm
- Touchscreen: Navigate through pages using intuitive swipe gestures
- Customization: Design your own pages, add your own pictures or start animation
- Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
- Can Switching: Use your display as a keypad and send your own can messages to the bus
- Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
- Logging: Log and save your data to the internal SD card for later analysis.
- Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
- DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
- Dimming*: Your display automatically dims along with the instrument panel
Different views
Configure your own page or choose from several predefined views:
- The display is delivered with predefined sample pages
- Creation of own pages possible and wished
- Up to ten pages possible
- 20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
- Widgets can be scaled in size and positioned using drag and drop
- Colours of the widgets fully adjustable
- Up to 64 widgets per page
