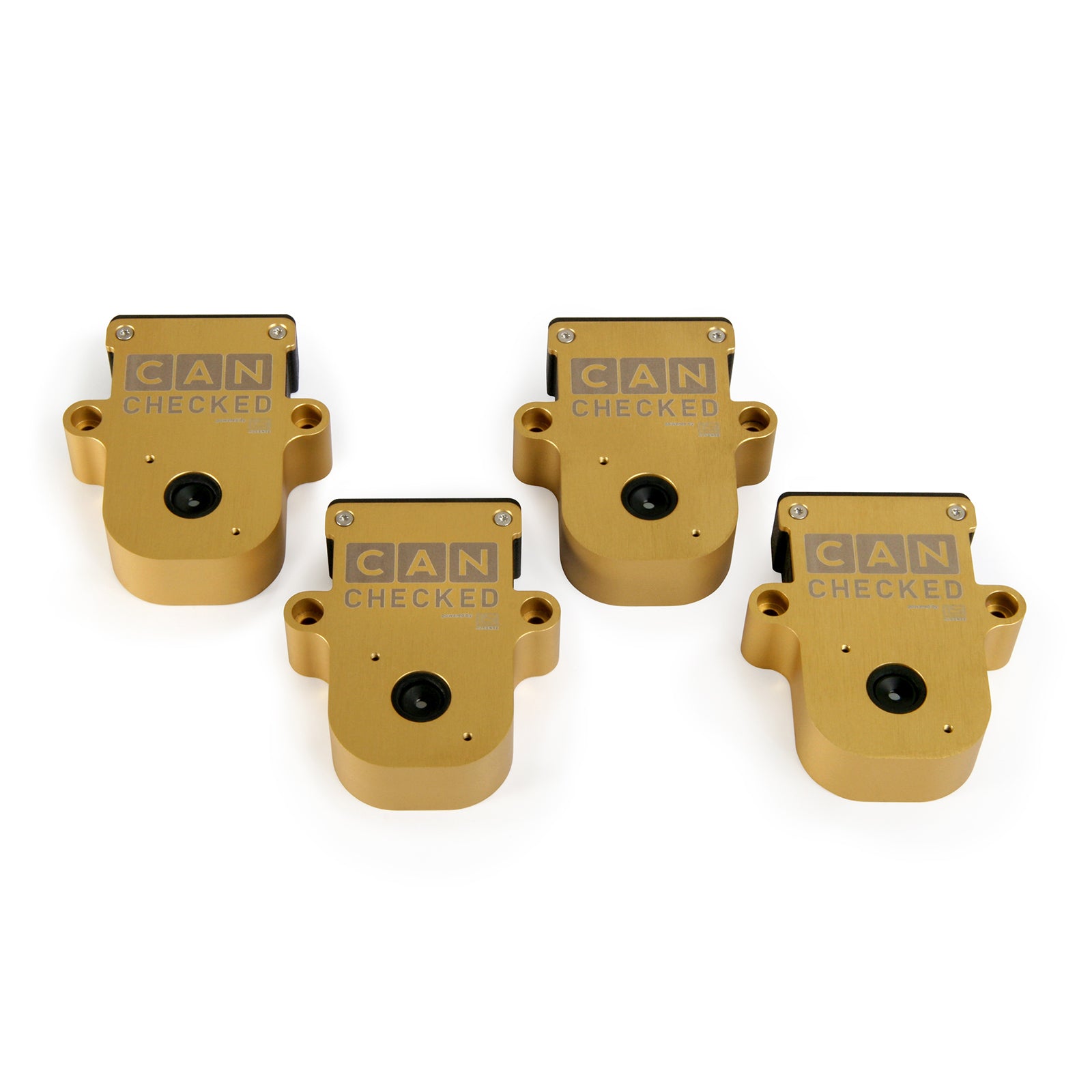

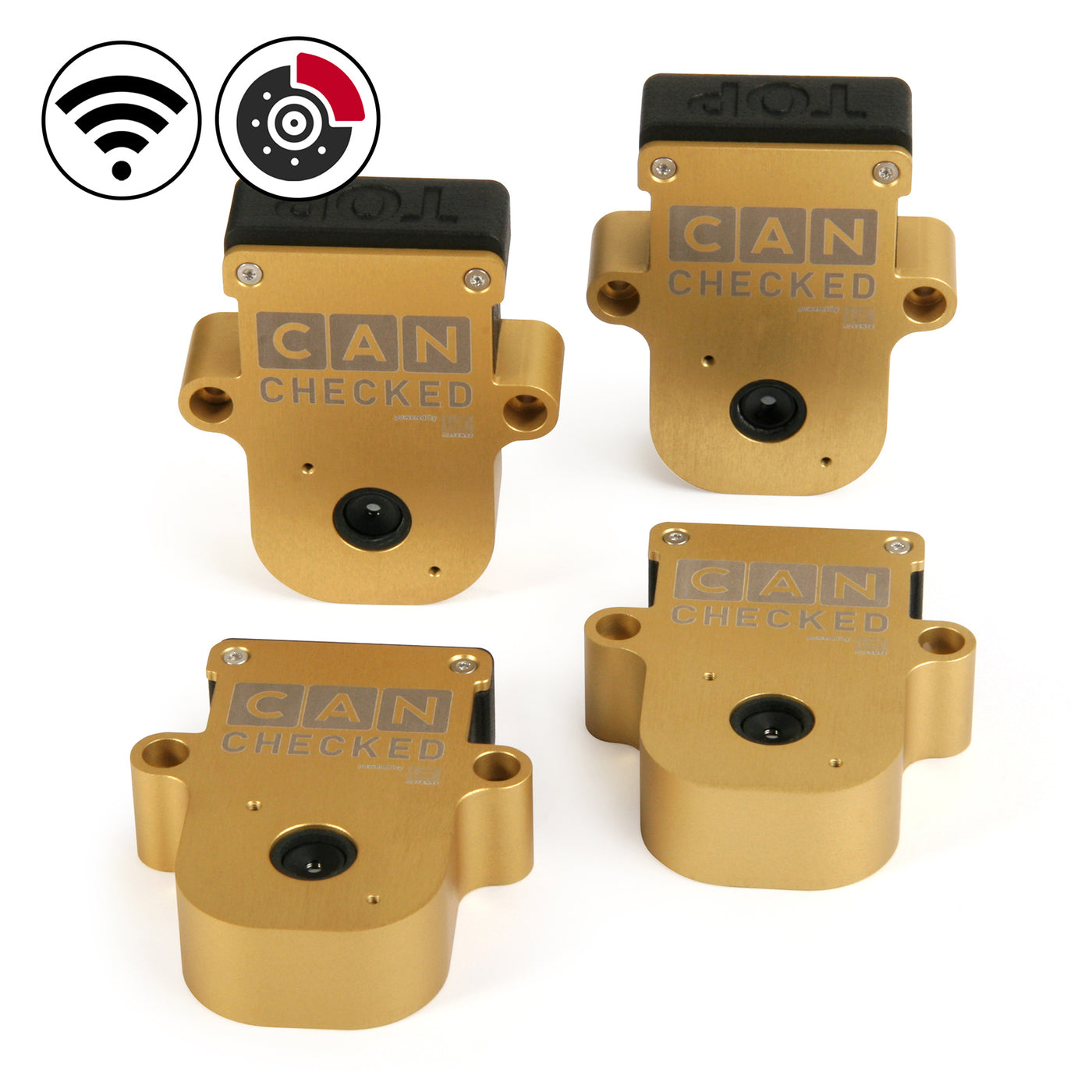

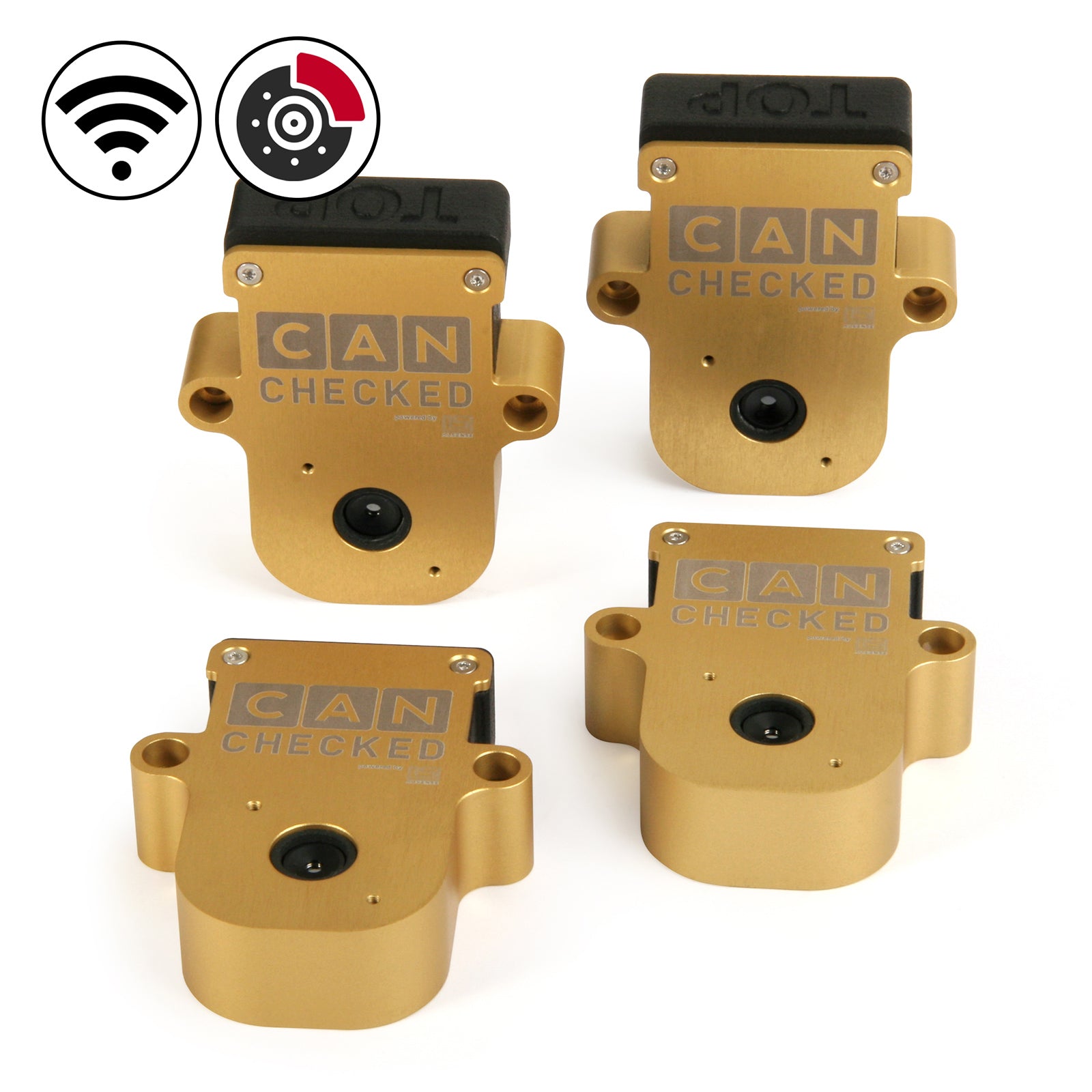

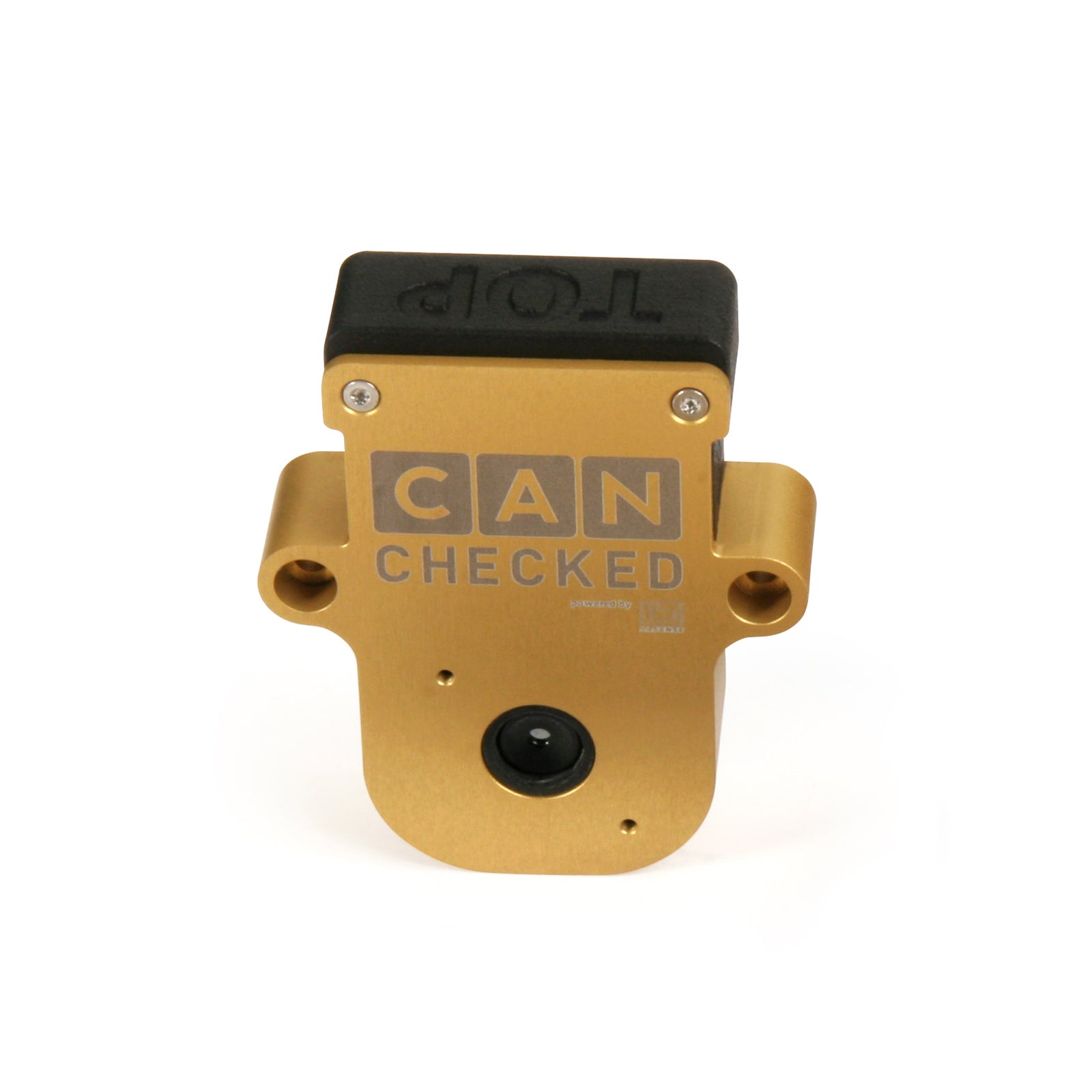

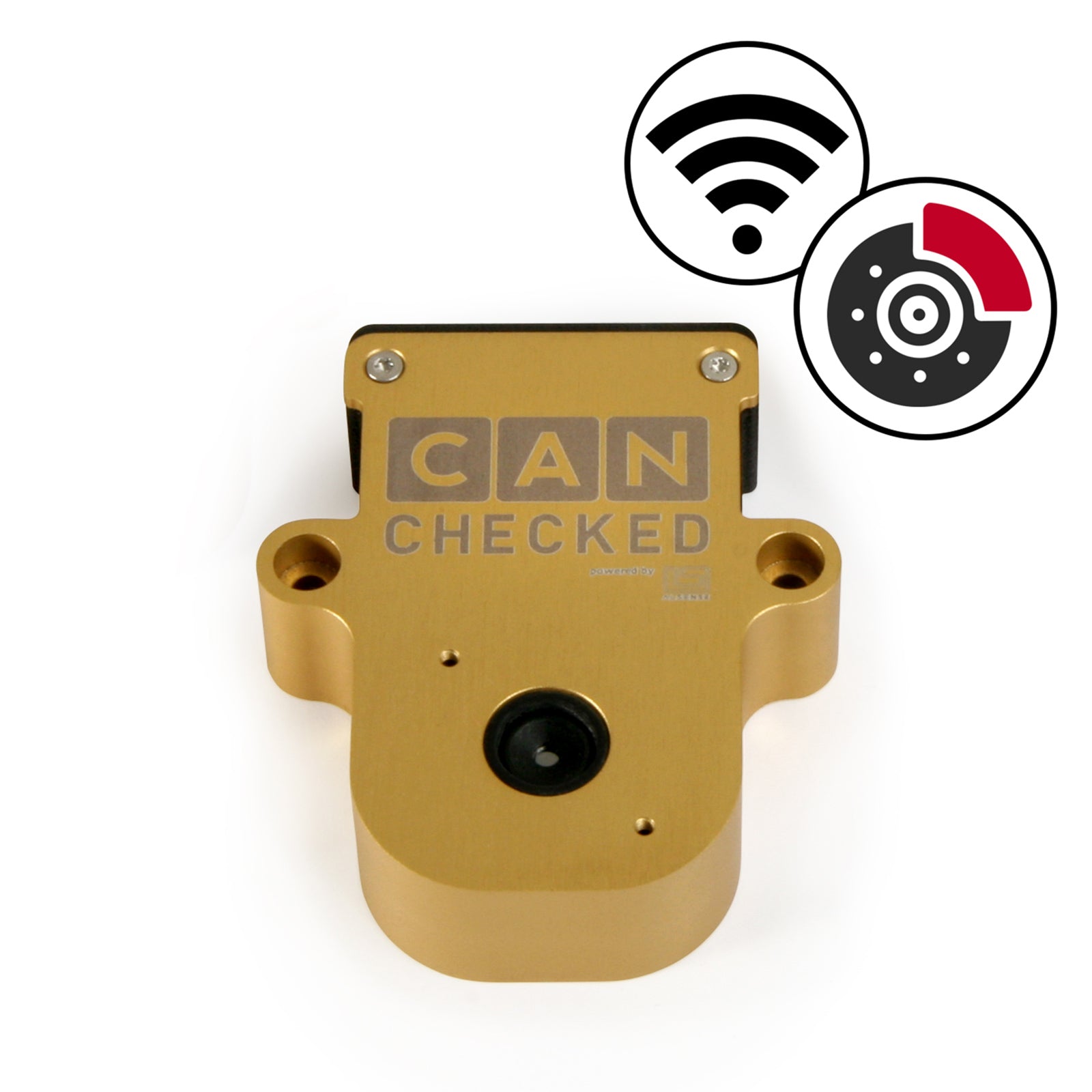

Tire Temperature Monitor Wireless - TMU01

Enhance your vehicle's performance monitoring with the Wireless Temperature Monitor—a high-performance, wireless system featuring an advanced infrared temperature sensor with CAN connectivity. This setup includes one multi-channel sensor, providing real-time, high-precision data for optimized tire and brake management on the track. With its easy setup, you’ll have a ready-to-go system for seamless mobility between vehicles.

Important Notice:

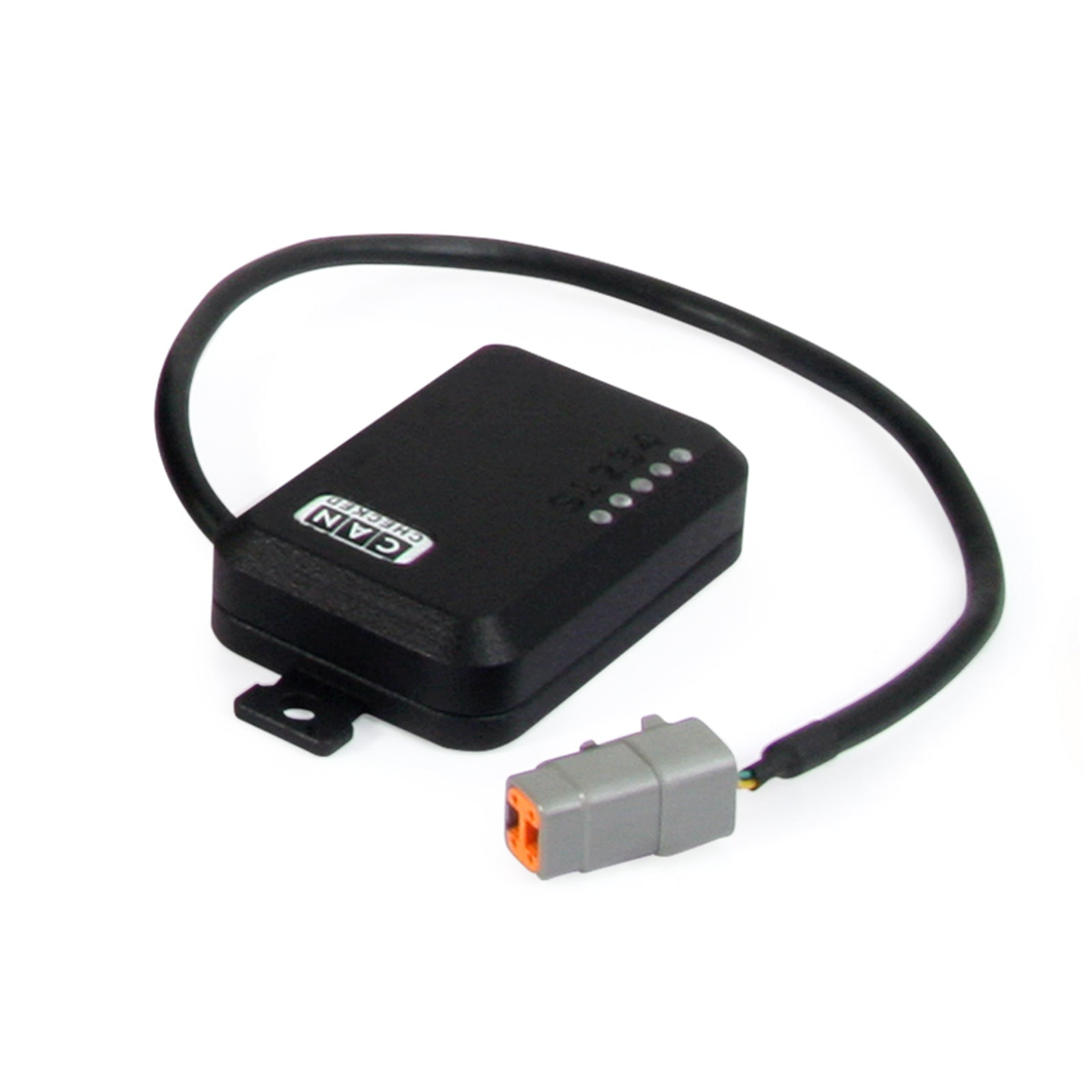

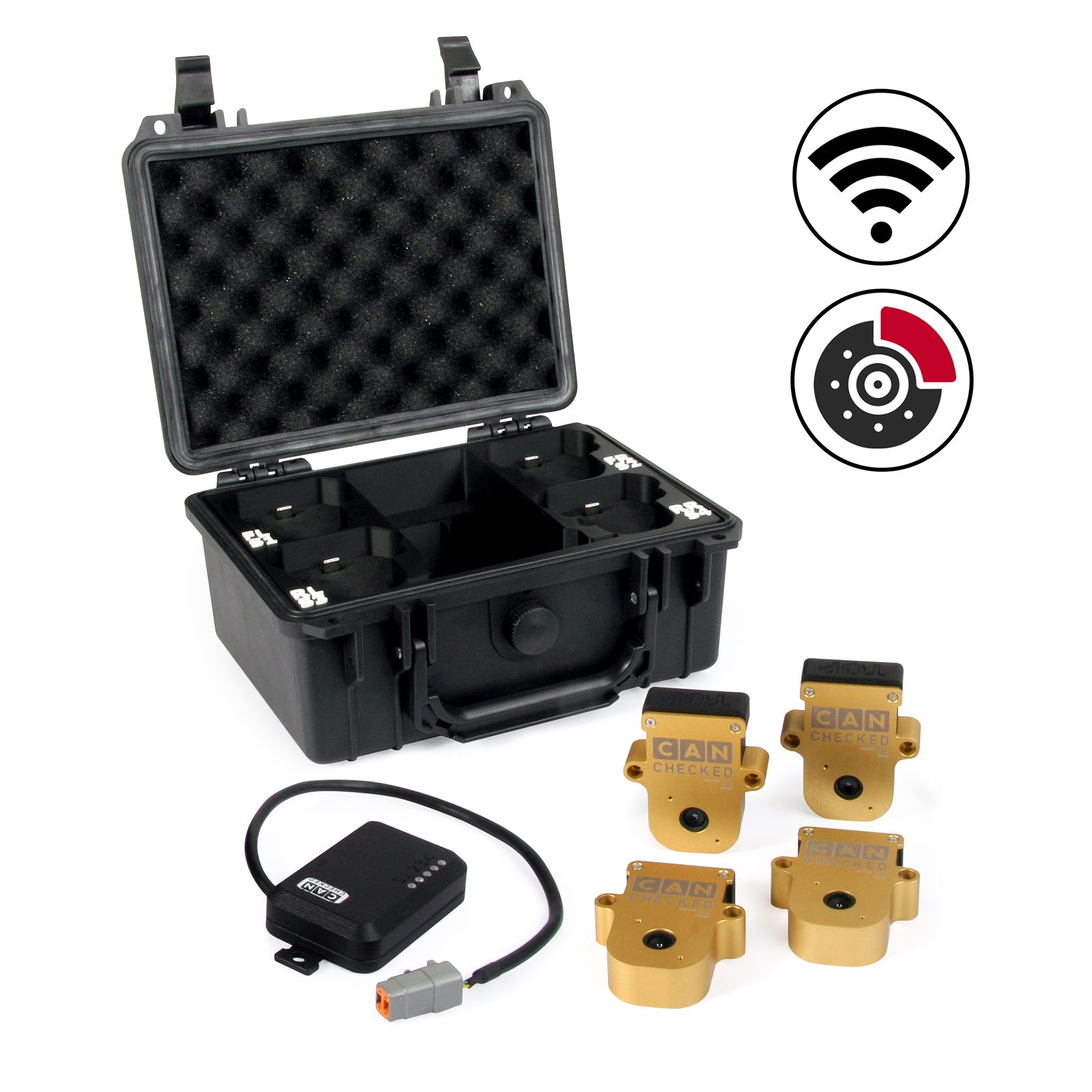

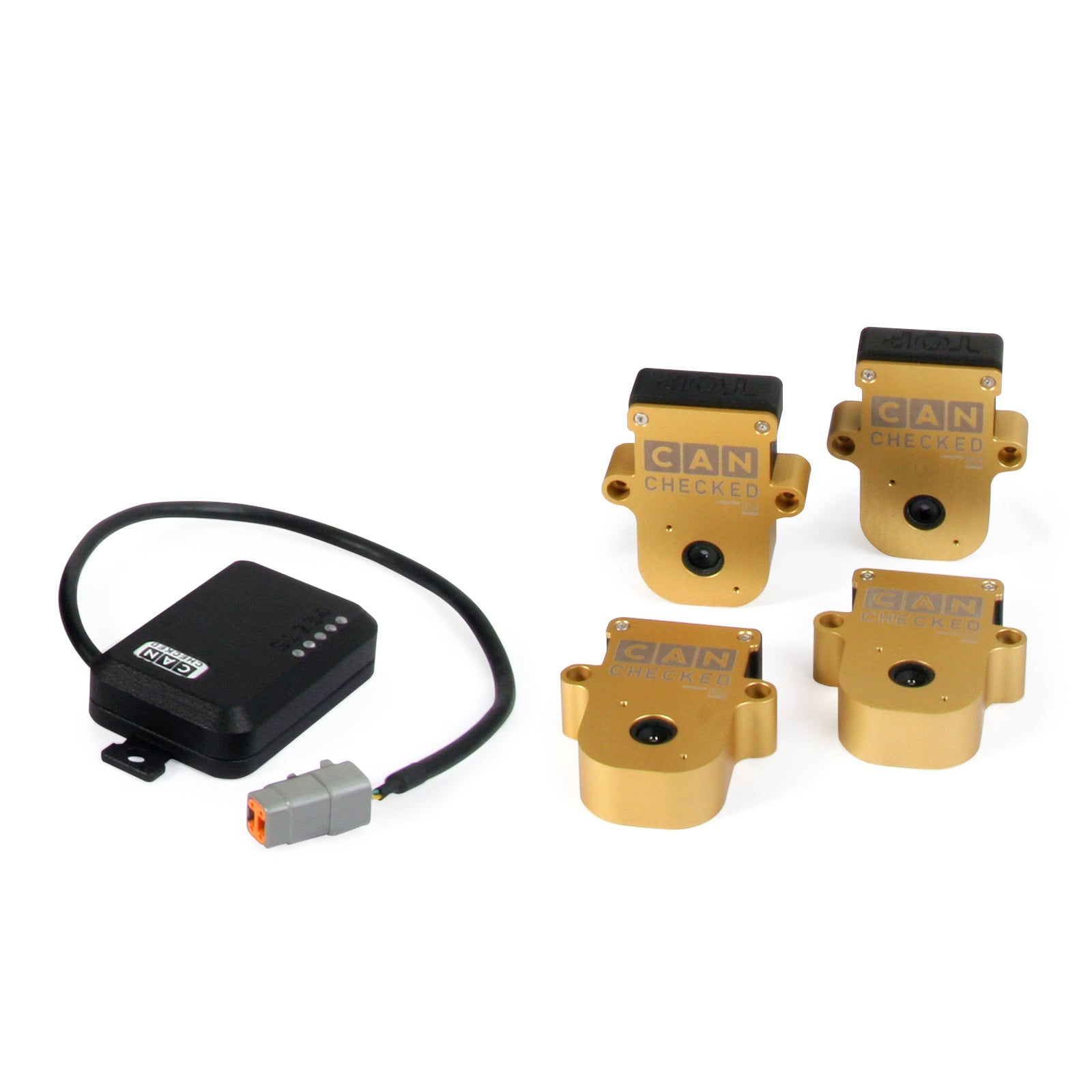

You will need a receiver box (e.g., from our TMU04 set) to receive the data and transmit it into the CAN Bus. This sensor will not work standalone.

Key Features:

• Wireless and Easy-to-Install: Simple setup with quick transfer between vehicles

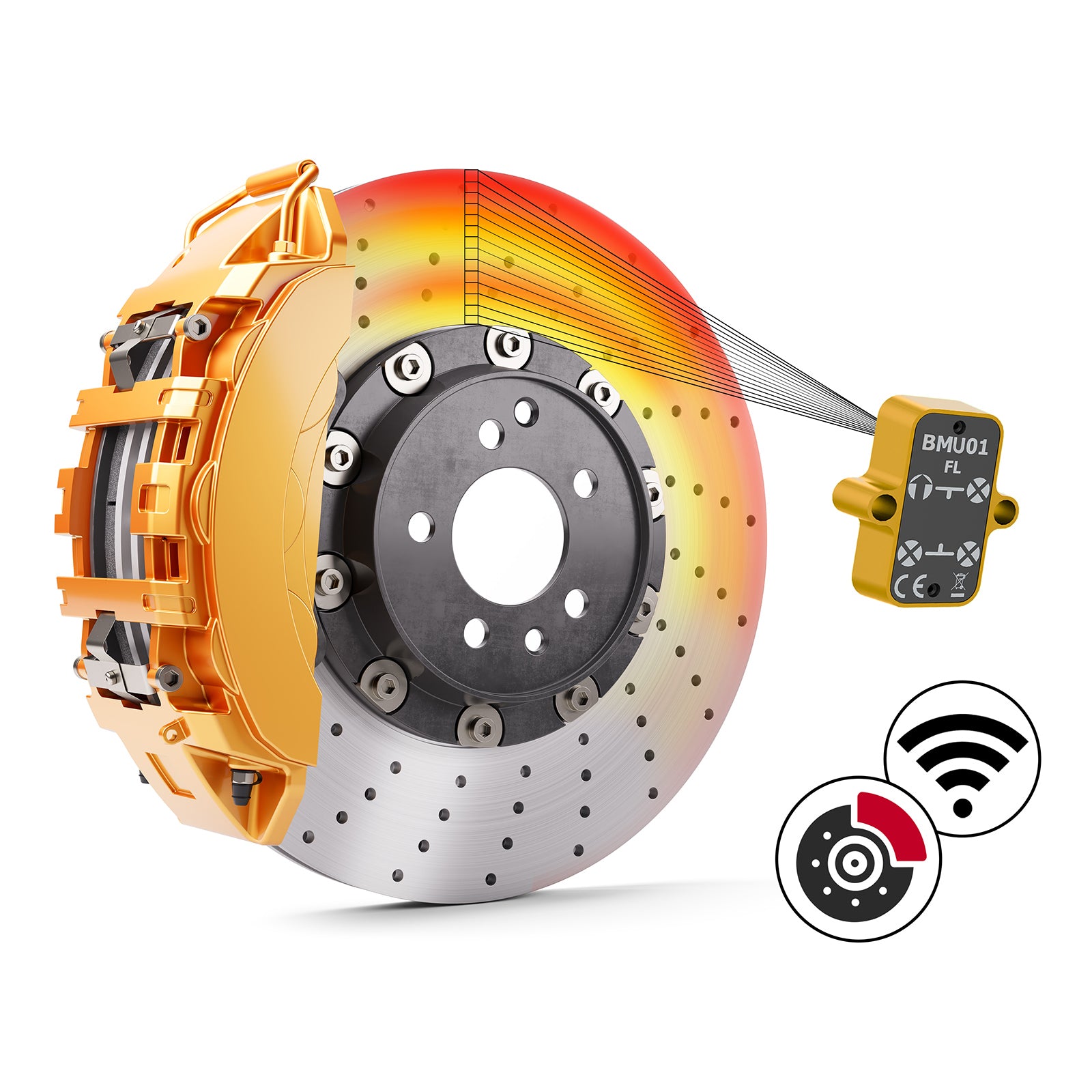

• Advanced Multi-Channel Infrared Monitoring:
  • Configurable 8 channels per tire or brake disk
  • Adjustable refresh rate up to 50Hz for precise, real-time insights
• Rechargeable Battery for Extended Use:
  • 250mAh battery (USB-C charged) in the sensor
  • Delivers up to 15 hours of active track use per charge
• High Precision and Wide Temperature Range:
  • Operating range: -40 to +300°C with ±1°C accuracy
  • Field of view: 110° x 6° for full coverage, with an optional 55° for focused measurements
• Rugged and Compact Design:
  • Dimensions: 64.0 x 42.0 x 17.5 mm
  • Weight: 57g
  • Durable aluminum/polyamide housing, IP65 rated for tough environments
  • Operating temperature: -40 to +85°C
  • Optional Protecting Lens: Available to enhance durability and protection
