VADpro VAD32 - CAN Bus 3.2" Display for Audi R8 Typ42 MK1
What is VADpro? VADpro displays, gauges, softwares and sensors enables the visual display of important engine data, such as oil temperature, boost pressure, exhaust gas temperature etc... This can be done either via CAN Bus or OBD 2 (depending on the ECU values) or via additional analog sensors.
Key Features:
- Control of GEN 1 and GEN 2 Haldex (Audi/VW) clutch systems (optional via license)
- 3.2 inch capacitive touch display with vehcile specific bracket for the air vent
- CAN Bus, standalone ECU's and OBD 2* values can be displayed (*for cars with OBD 2 protocol)
- 8GB SD Card Memory
- Up to 10 freely configurable display pages
- Two digital and four analog inputs for 0 - 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)
- Optional shift light function
- Performance Meter (measures for example the time from 100-200 km/h)
- Individual minimum and maximum warning values
- Popup function when values exceed or fall below
- Screen brightness adjustable
Views:
- 10 pages to configure freely- Up to 17 widgets per page
- 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) - Widgets via Drag'n'Drop movable and resizable
- Depending on the widgets color adjustment possible
As an alternative, the online configurator is available. Here, the views can be created in advance and then copied to the SD card via the export function.
Performance Monitor
- High speed CAN integration gives you access to up to 128 vehicle sensors that you can display in real time. Swap sensors on the fly using the 3.2" touchscreen and set up custom ranges and warning pop-ups using the DSS software.
Diagnostics
- Swipe down from any page to diagnose malfunctions on the fly. VADpro can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS and other systems.
Data Logging
- Easy access to log on demand and save to the internal SD card.
- VADpro is precision designed and integrates perfectly with your vehicle's interior and retains the functionality of your car's vent.
- 4 Analog + 2 Digital inputs allow you to monitor third party sensors and devices. Future licences in development will unlock Haldex, Water Methanol, Ethanol Fueling integration.
- VADpro comes with six pre-loaded dashboards. A total of ten can be customized using the included software and library of widgets.
- VADpro can display up to ten pages and has access to 128 of your vehicle's sensors. Use the touch screen to navigate between each page and choose which sensor you want to display. Need more customization? You can personalize your views by changing the graphics, sensors and widgets using the provided DSS software. We've pre-loaded some examples on your VADpro display to get you started.
- A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc...
- License for controlling the GEN 1 and GEN 2 Haldex clutch systems
- Serial adapter (VEMS + Ecumaster without CAN)
- Other vehicle-specific integrations

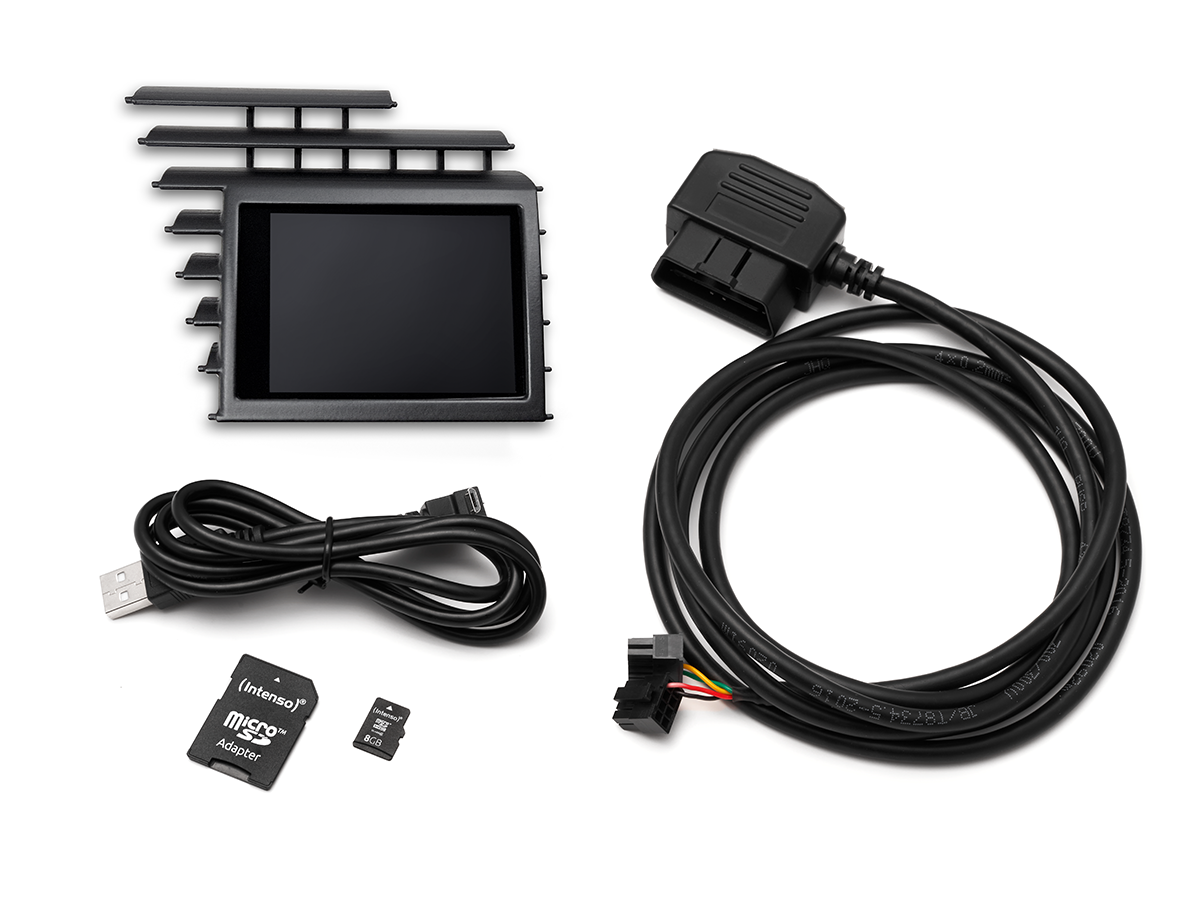

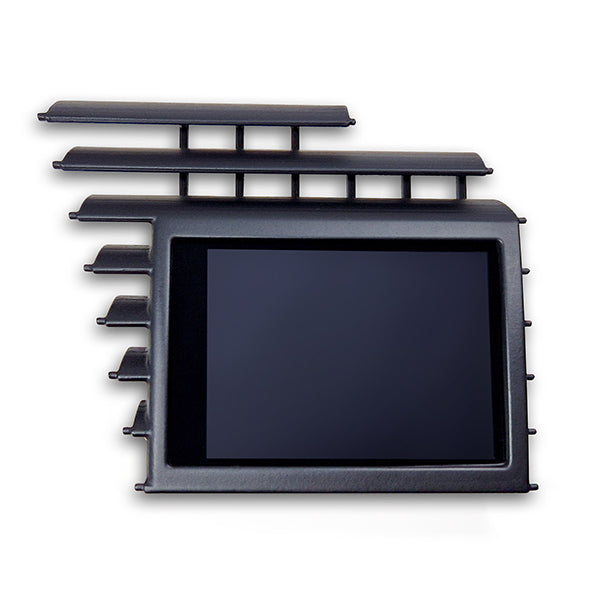

- VADpro 3.2 inch display

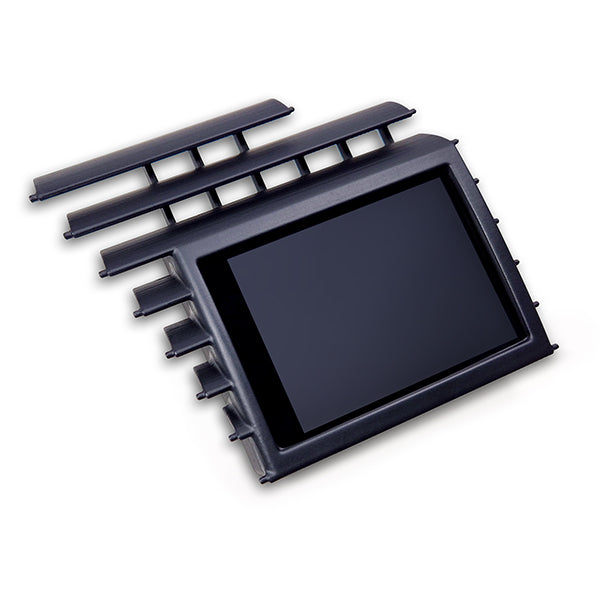

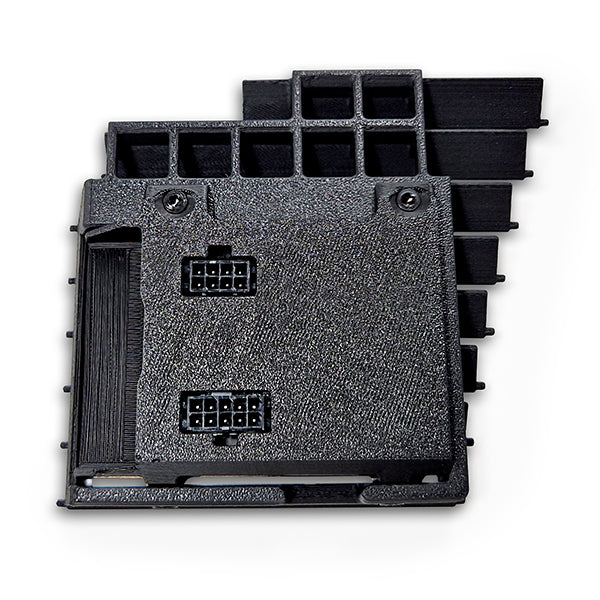

- Vehicle specific bracket for vent pod

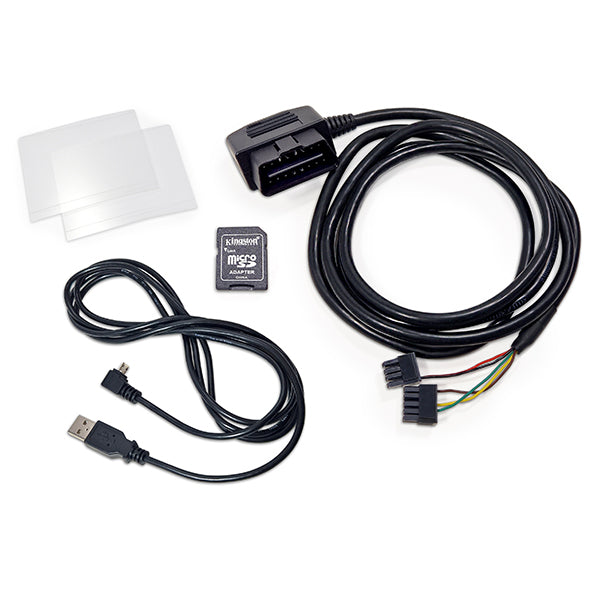

- Cable set
- OBD 2 adapter cable (2 m)
- Fixing screws
- 8 GB micro SD card
- Micro SD Card Adpater
- Quickstart Guide
If available, installation manuals can be found on CANchecked website
The display can be custom configured via the website. The dbc-converter for the Can Bus protocol and the online configurator for the widgets, whereby this can also be set via the touch display.
The temperature range of the display is -10°C to 70°C.
12V are required as a voltage supply, 5V or 24V are optional possible.
FAQ
Will the Display heat up in the air vent?Will the Air Vent still work with the display installed?
Can I change the appearance of the display, the units and scales?
Can I use analog inputs?
What ECU Data can CANchecked Access?
- Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG temperature
- Pressures: Boost pressure, ambient pressure, fuel pressure, pre-feed pump
- Lambda / mixture: Lambda value, injection time, short-term lambda adjustment, longterm lambda adjustment
- Miscellaneous: Speed, air mass (g/s), vehicle speed, throttle valve angle, total ignition angle, ignition angle reduction per cylinder, N75 pulse rate in%, terminal 30 voltage, oil level, torque, gear...
- If values are missing, they can easily be added.
Can I change the look of the boost gauge graphics to match my car?
- Sizes: Background: 320 pixels X 240 pixels, Boost gauge: 240 pixels X 240 pixels, Tachometer: 160 pixels X 160 pixels
